Open a system below to see its reference images, checks and enquiry links.
Tap a system to inspect the details. Uprights Connections

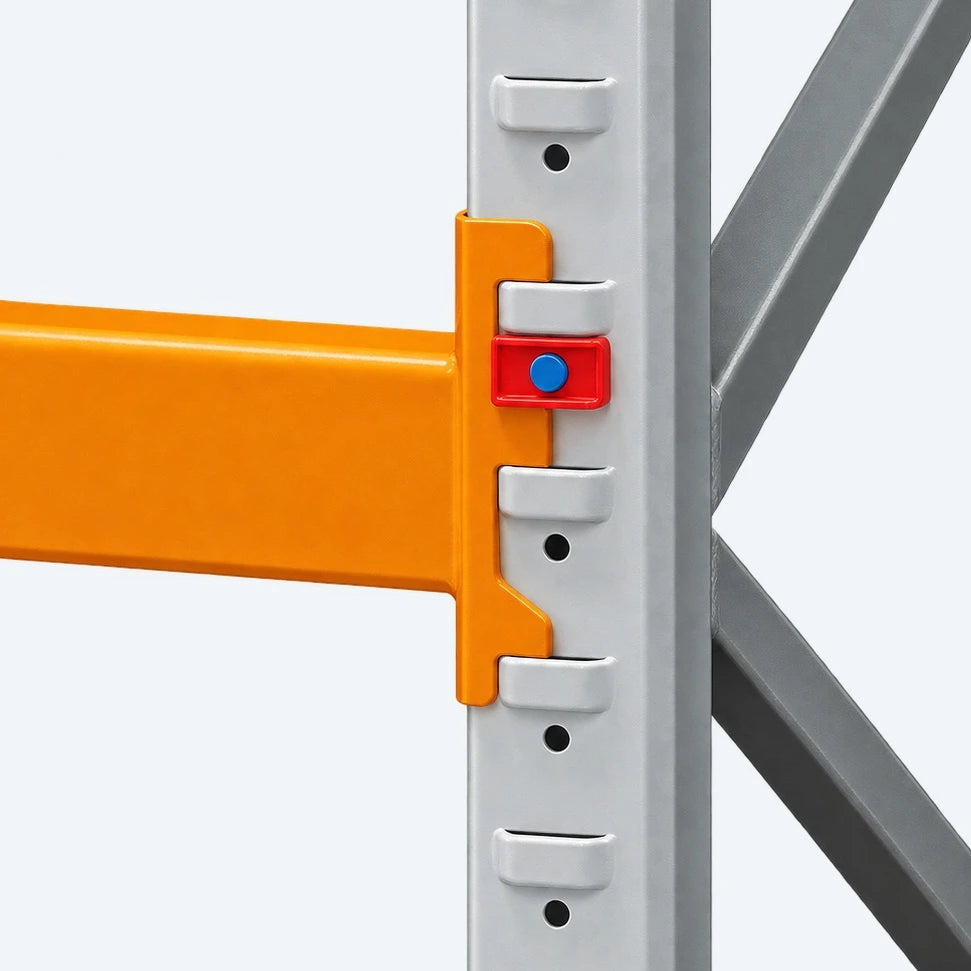

01 +
System reference / possible match

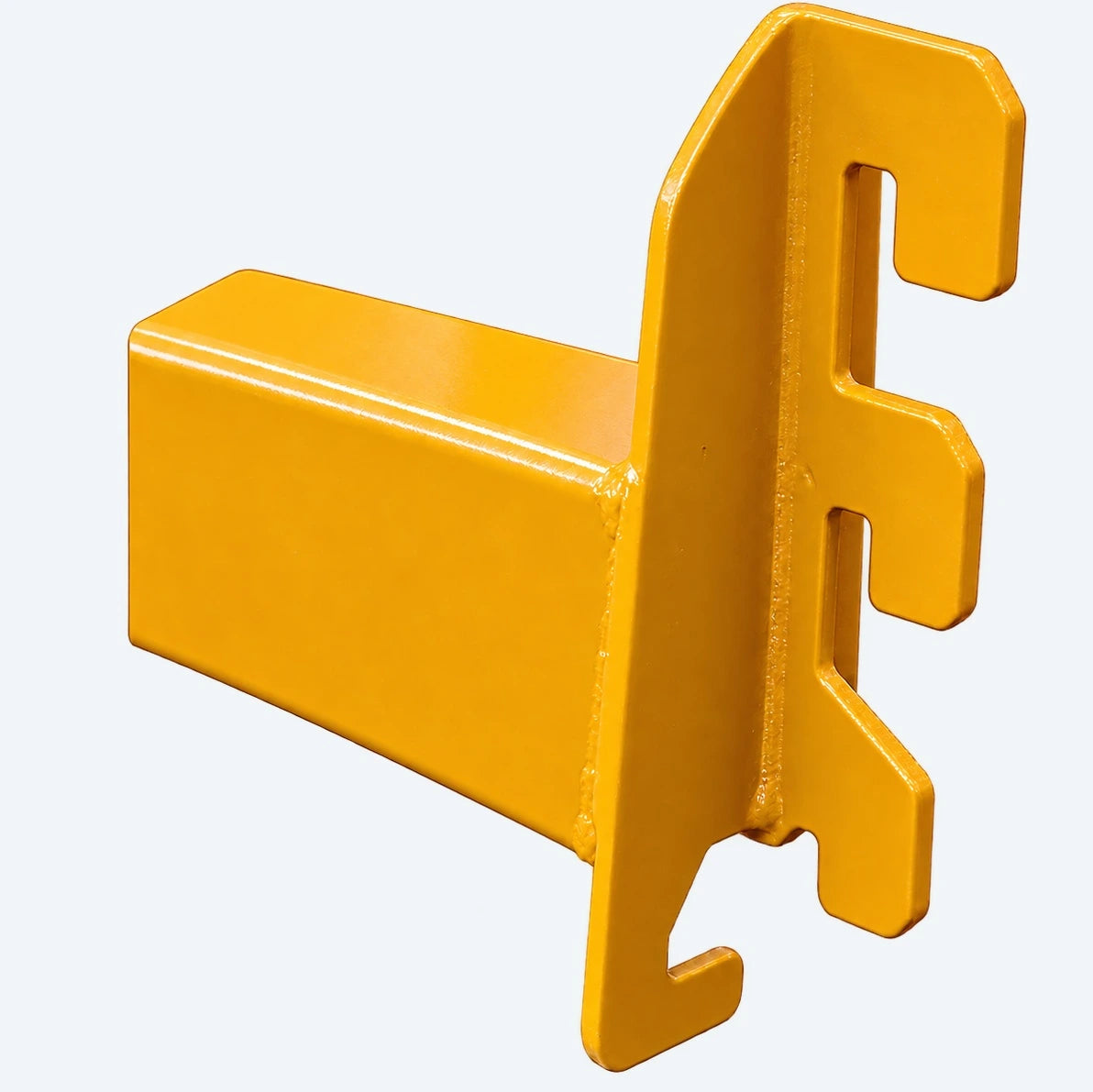

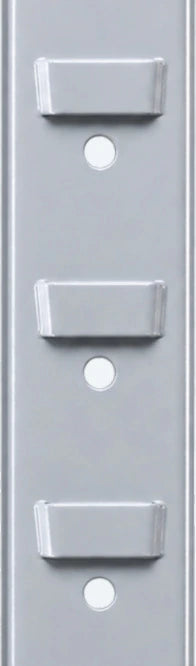

Apex 01 / Upright 02 / Connection 03 / Beam reference Raised bridges Three things to check Pressed-out lips on the upright face. Small round holes between the lips. Connector hooks over the raised lips.
Upright colour clues White / light grey
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Look for pressed-out bridges and confirm the beam lock.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

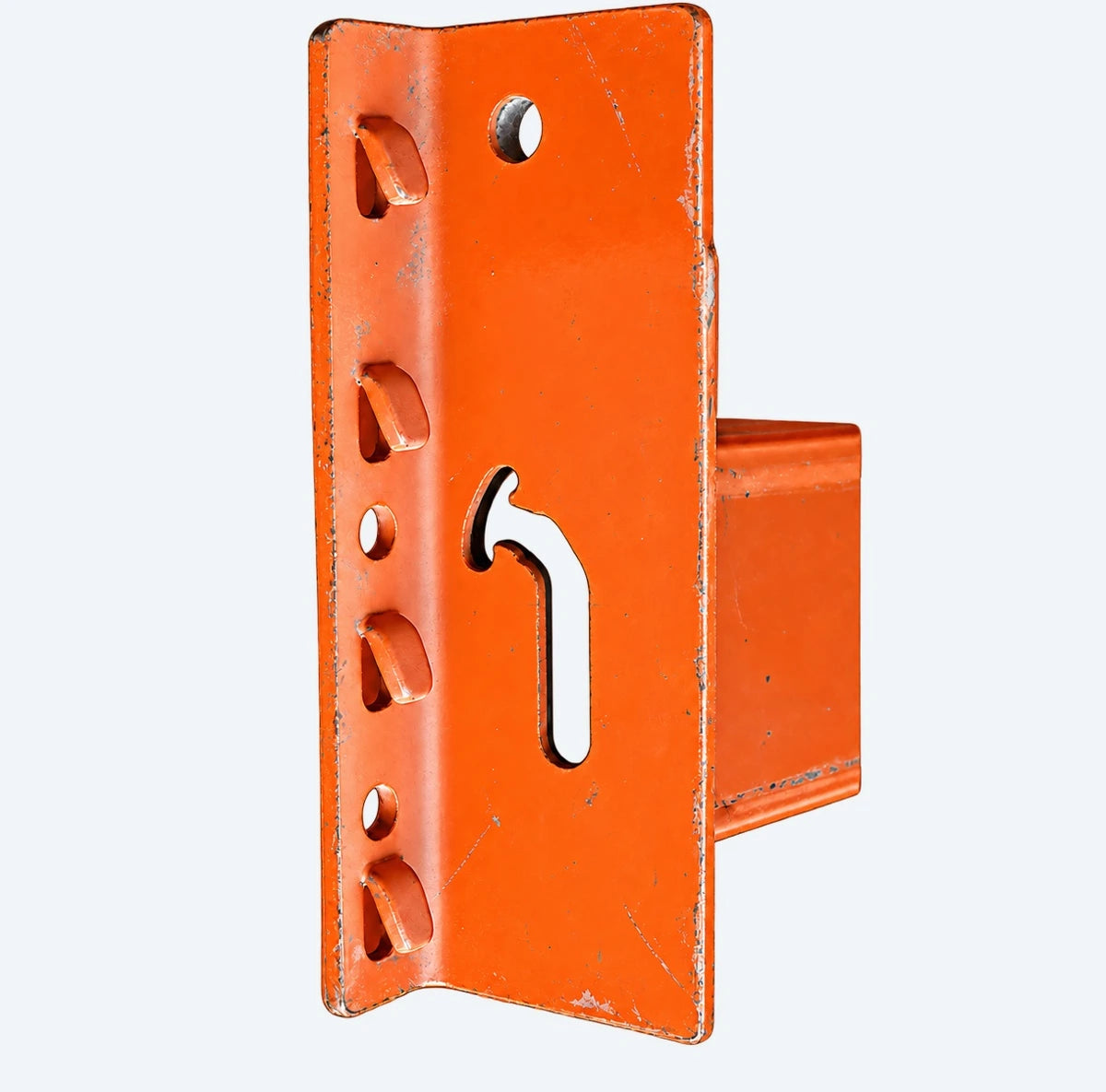

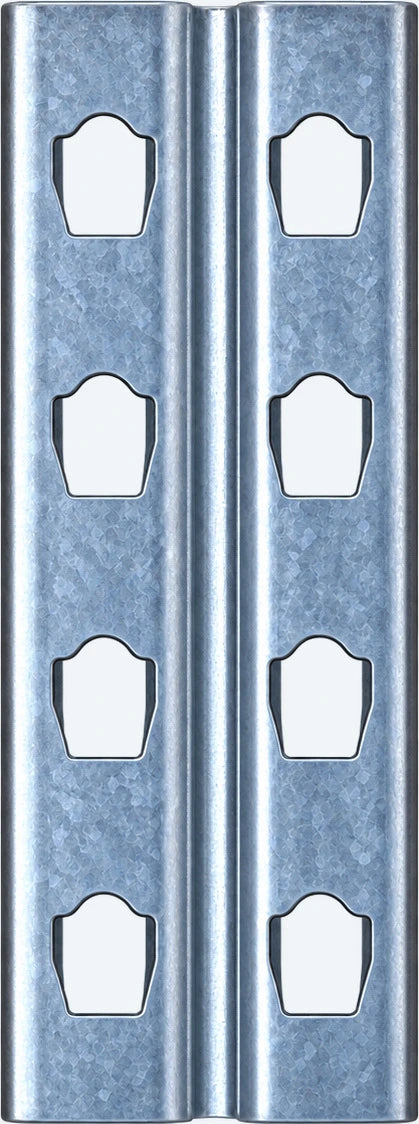

02 + AR Racking Shouldered slots
System reference / possible match

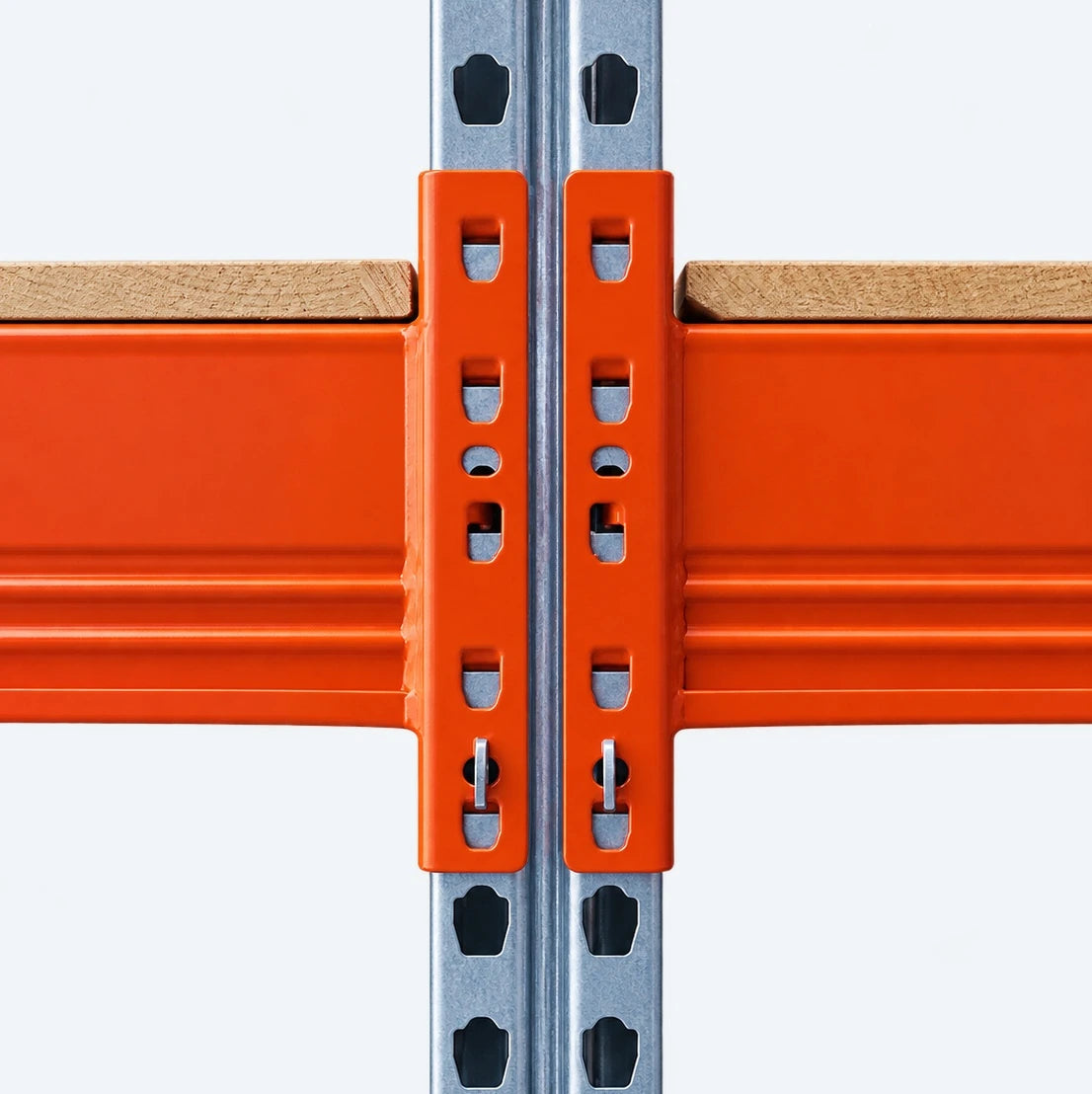

AR Racking 01 / Upright 02 / Connection 03 / Beam reference Shouldered slots Three things to check Two rows of shouldered openings. Raised ribs run down the upright face. Check the AR marking and connector hooks.
Upright colour clues Galvanised
Beam colour clues Orange / galvanised Finishes vary. Use the shape and markings to confirm.
Similar openings appear on other systems. Confirm the AR marking.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

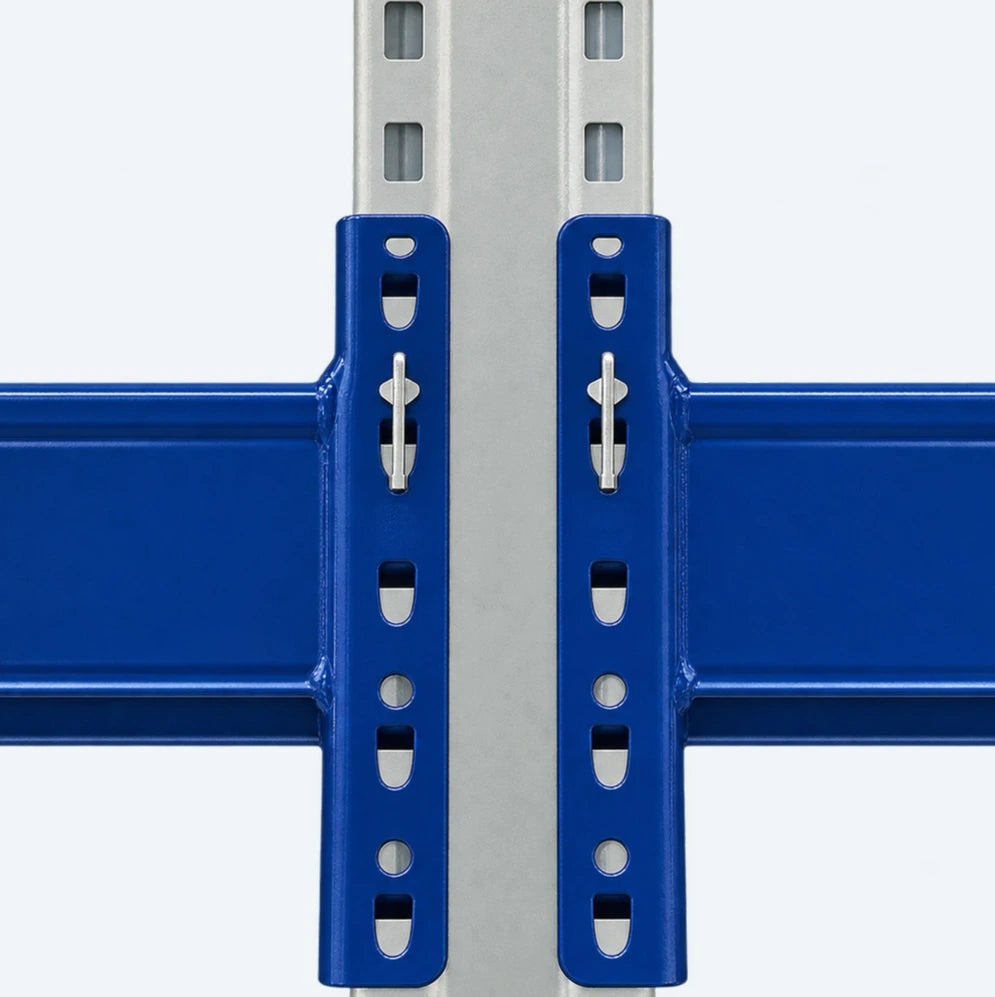

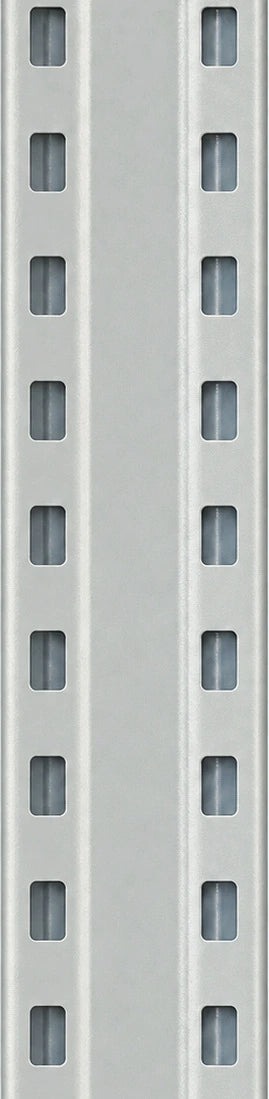

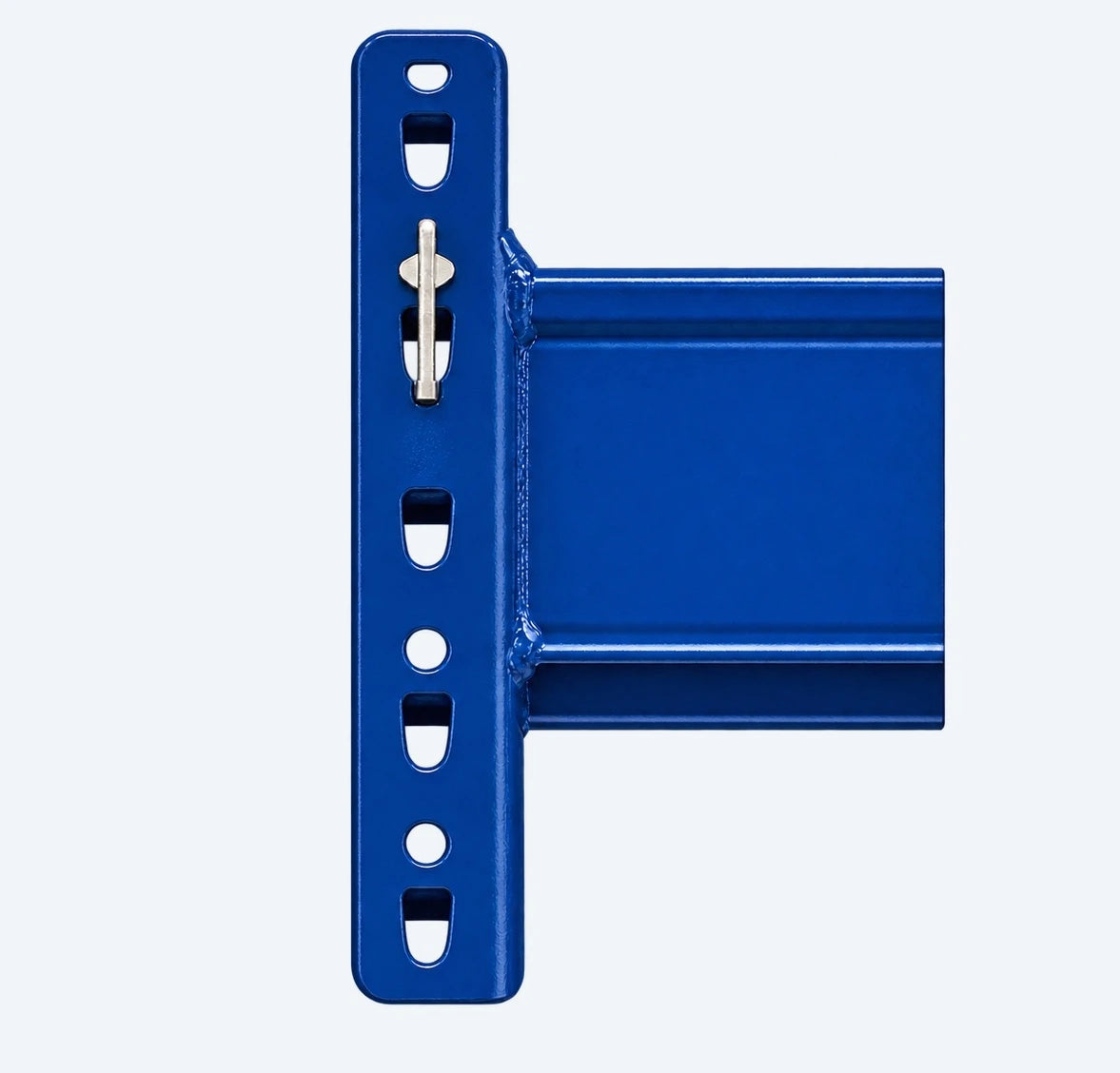

03 + BITO ARP Twin rectangular slots
System reference / possible match
BITO ARP 01 / Upright 02 / Connection 03 / Beam reference Twin rectangular slots Three things to check Two straight rows of short slots. Narrow slots beside a wide centre face. Compare the full connector and locking pin.
Upright colour clues Galvanised
Beam colour clues Blue Finishes vary. Use the shape and markings to confirm.
Record the BITO series. Colour alone does not establish ARP.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

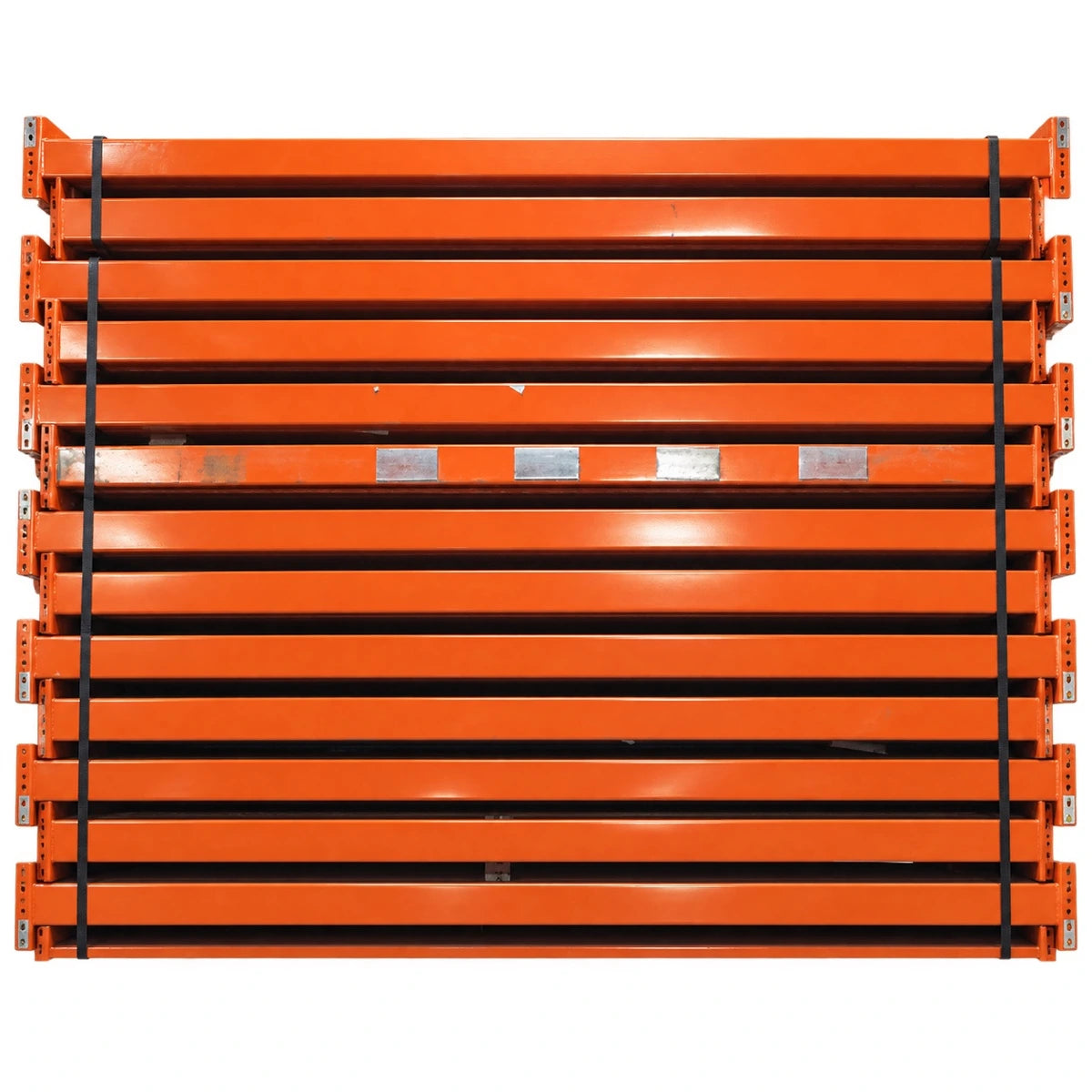

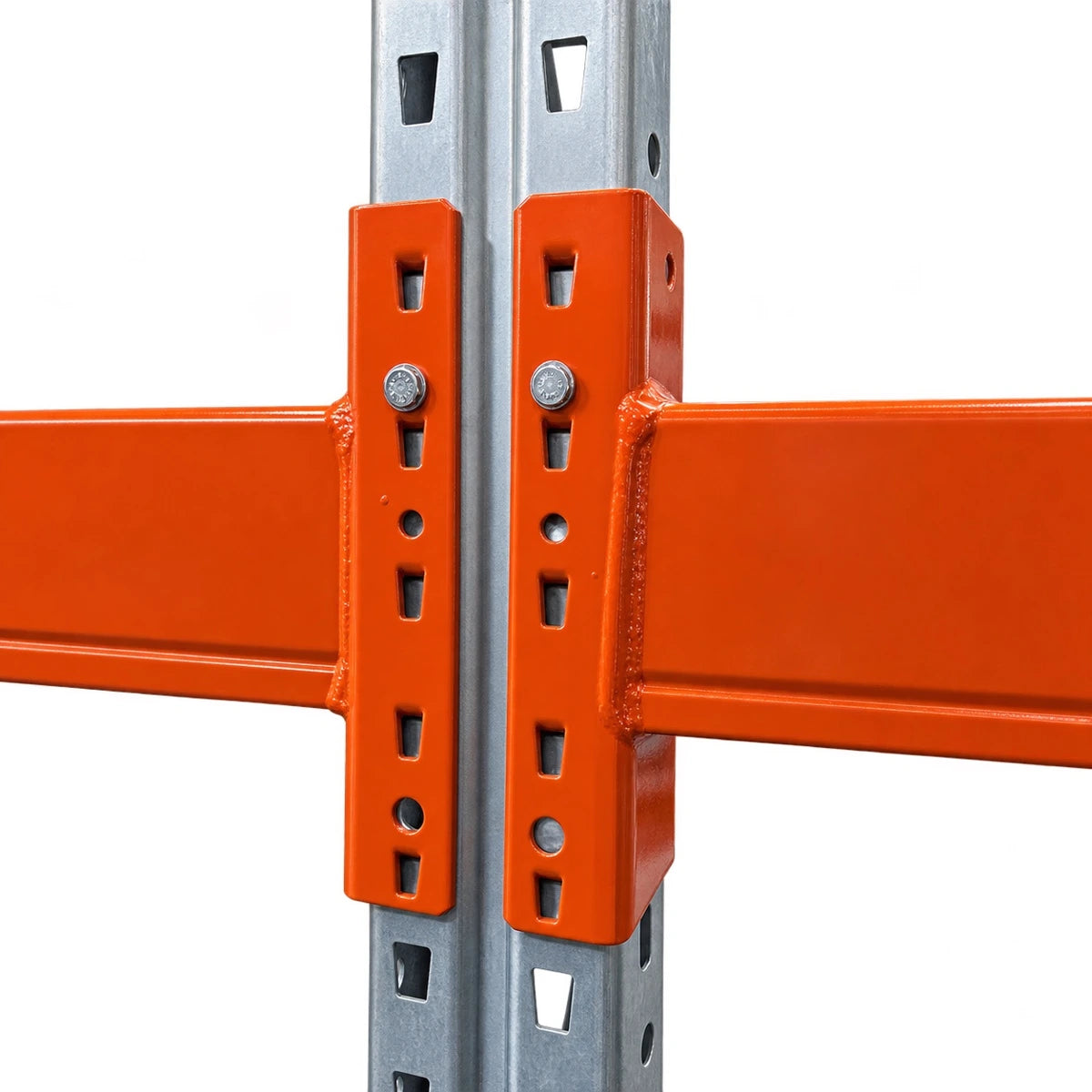

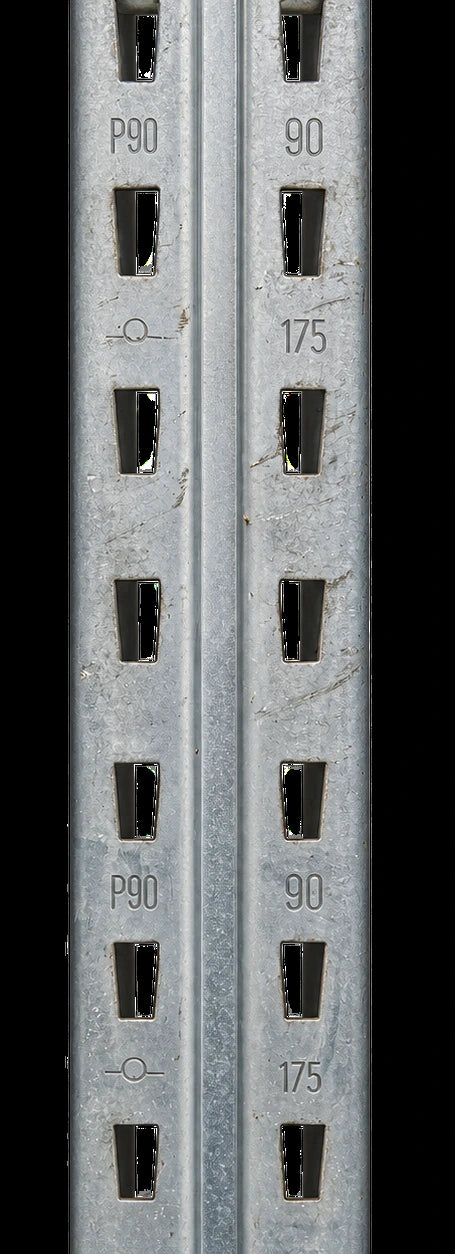

04 + Dexion P90 P90 marking + twin rows
System reference / possible match
Dexion P90 01 / Upright 02 / Connection 03 / Beam reference P90 marking + twin rows Three things to check Read the P90 marking and full profile code. Two slot rows flank a raised central channel. Confirm connector hooks and the correct safety lock.
Upright colour clues Galvanised
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
P90 and P90+ generations vary. Record the complete profile code.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

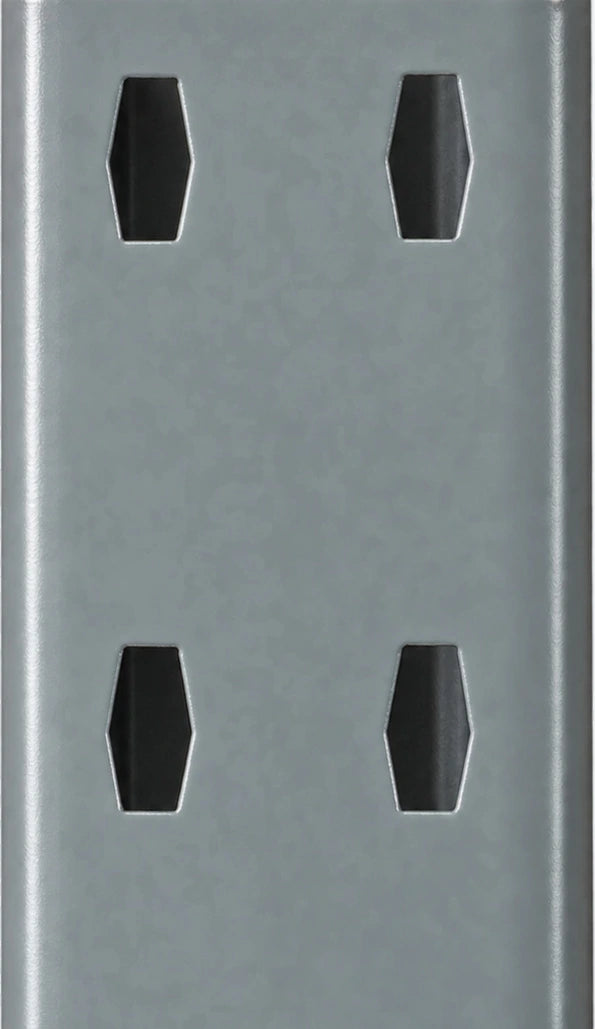

05 + Dexion Speedlock Mk3 Angular six-sided slots
System reference / possible match

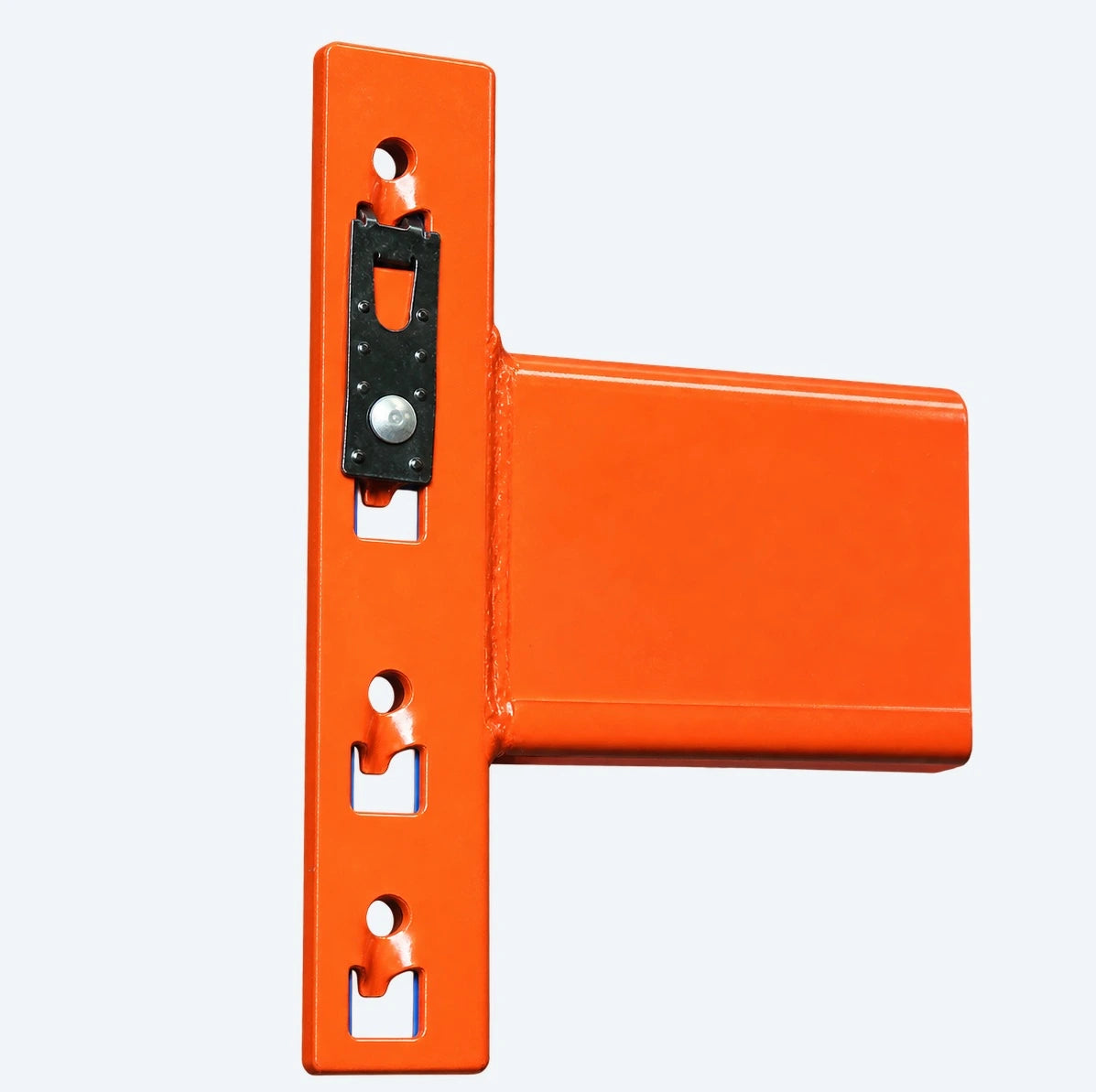

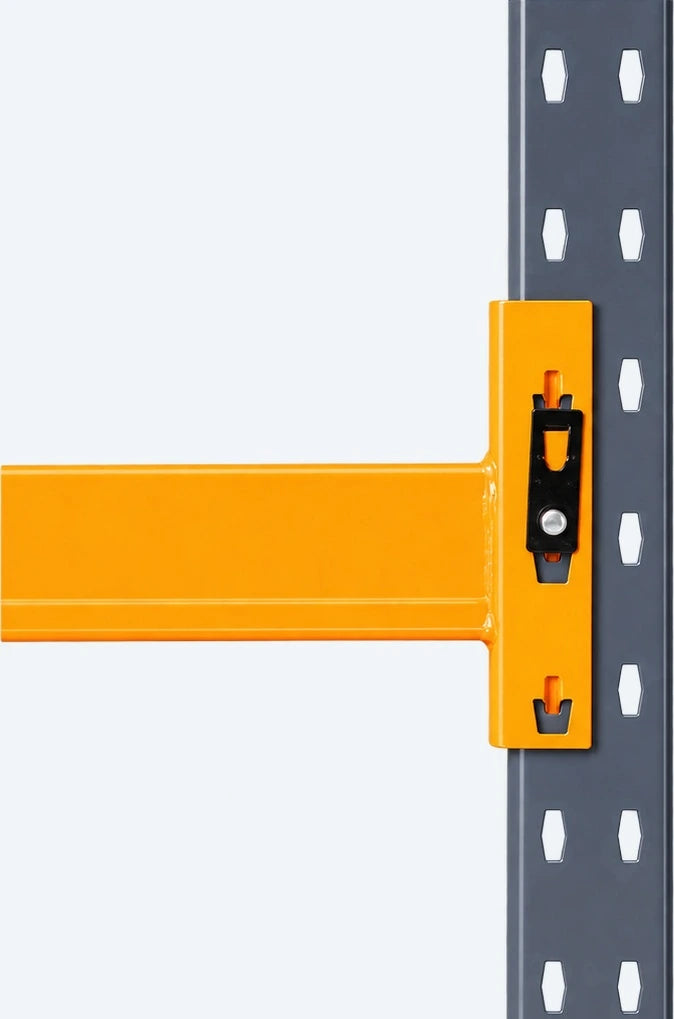

Dexion Speedlock Mk3 01 / Upright 02 / Connection 03 / Beam reference Angular six-sided slots Three things to check Two rows of elongated hexagonal slots. Wide middle; narrower top and bottom. Check the Mk3 connector and beam lock.
Upright colour clues Grey / silver
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Compare the angular openings and the Mk3 connector together.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

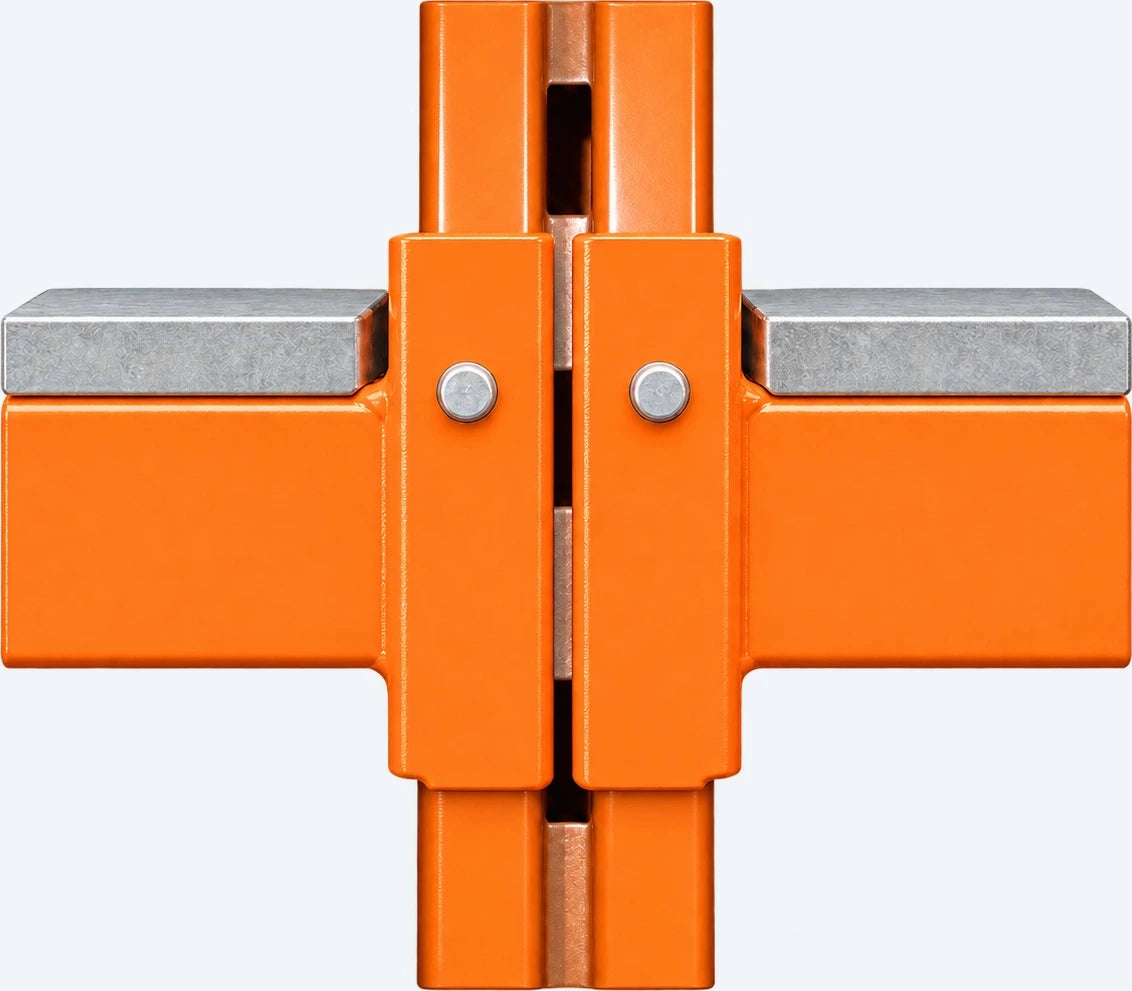

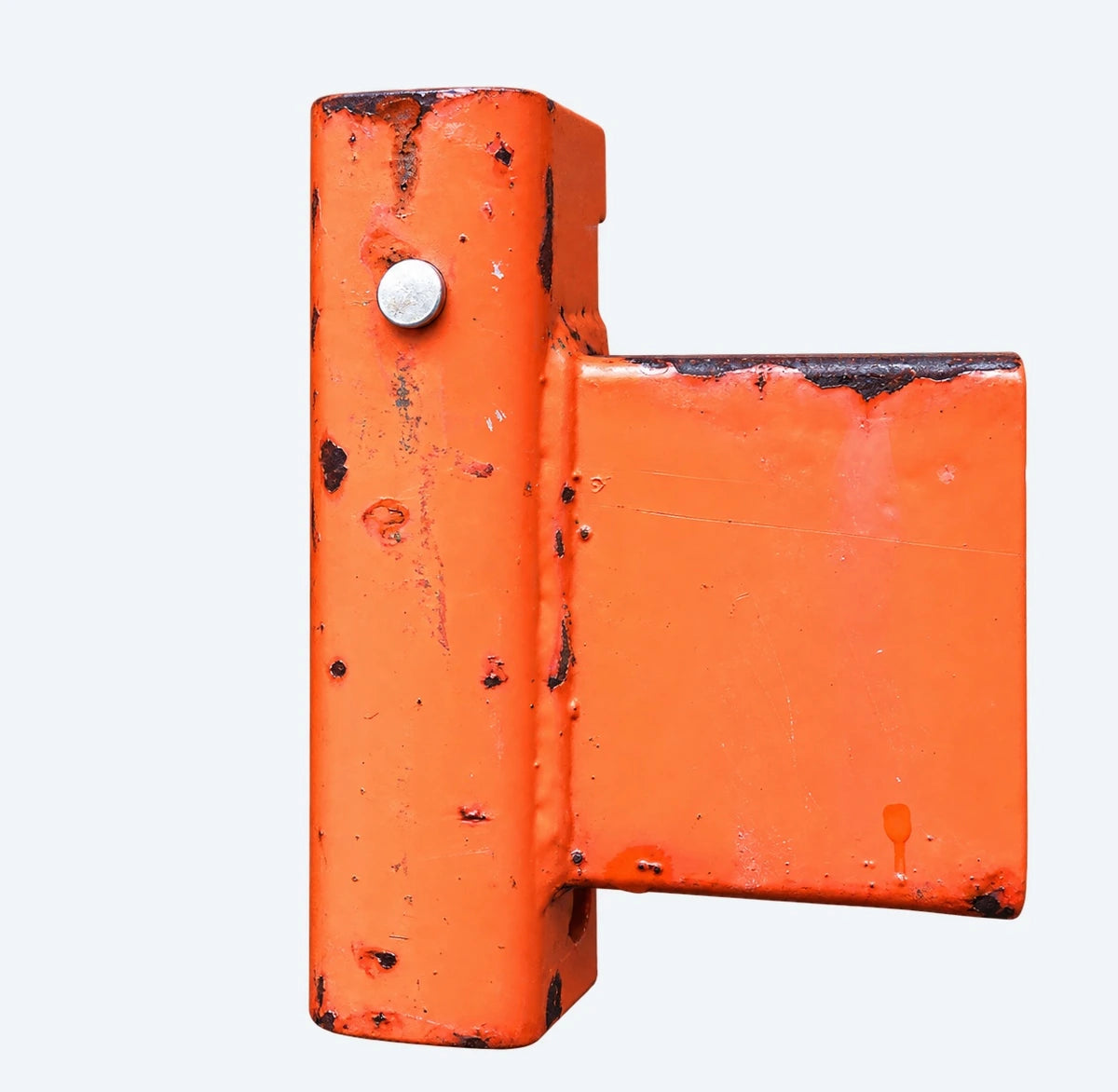

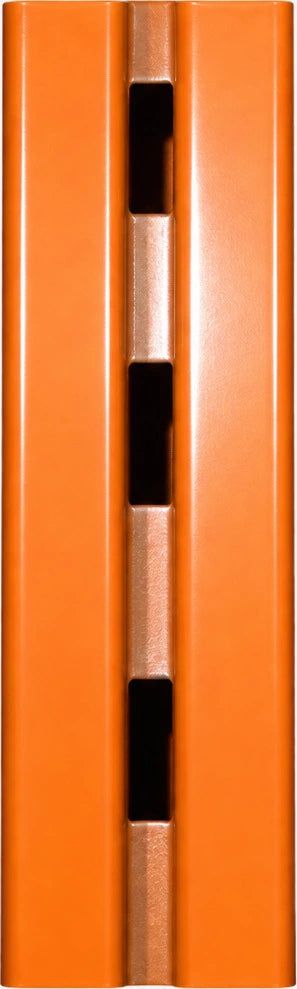

06 + Finspa Single central channel
System reference / possible match
Finspa 01 / Upright 02 / Connection 03 / Beam reference Single central channel Three things to check Deep, narrow channel down the front. Stacked slots within the centre channel. Photograph the connector from the side.
Upright colour clues Orange
Beam colour clues Orange shown Finishes vary. Use the shape and markings to confirm.
A legacy system: send clear connector photographs for specialist confirmation.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

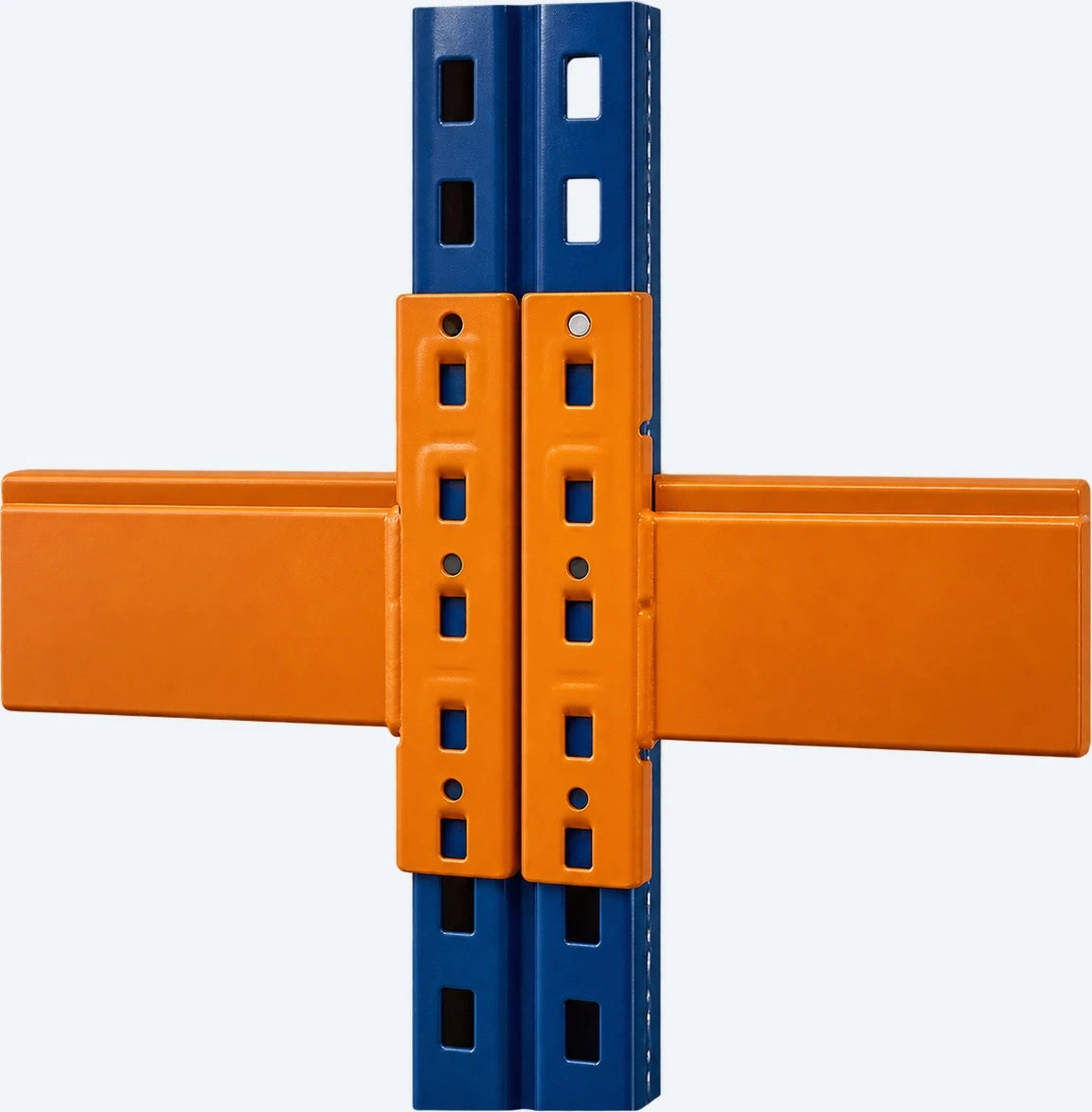

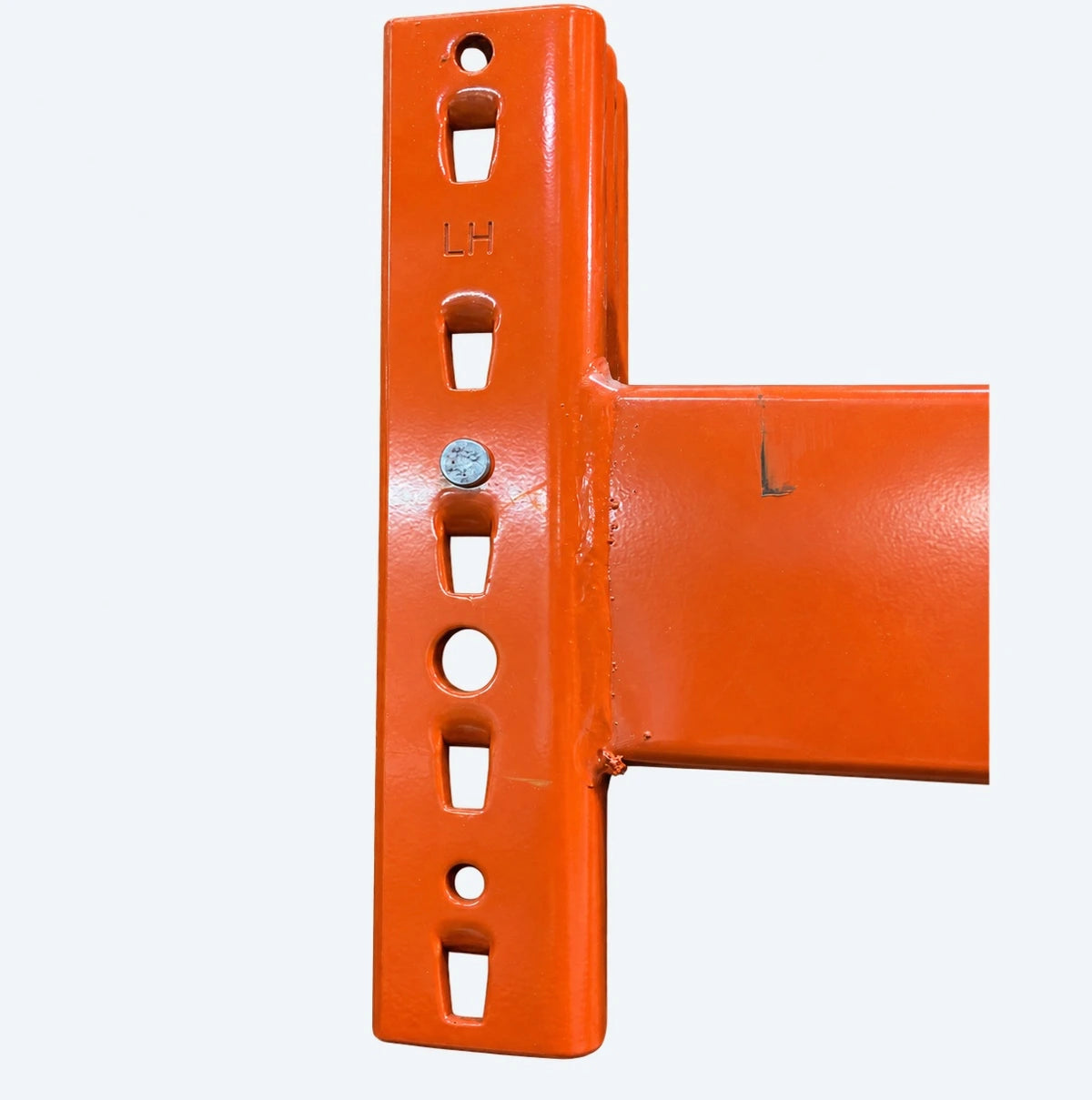

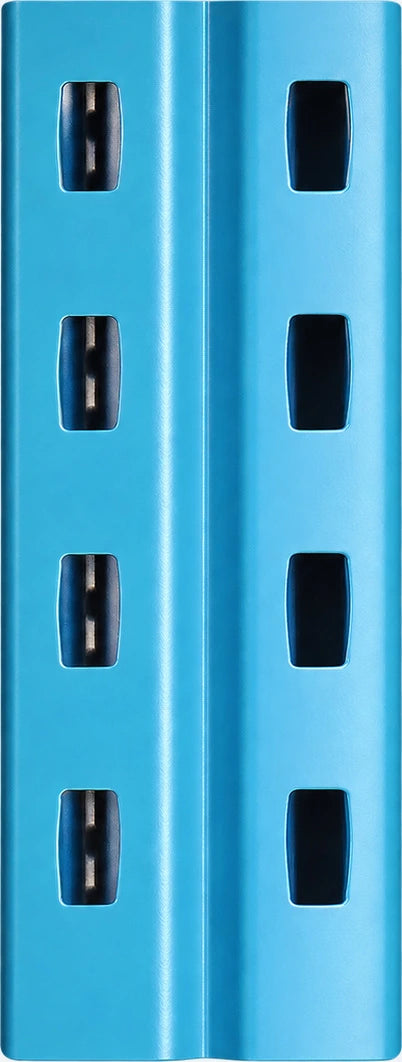

07 + KS HiLo Premier Rack Short rectangular slots
System reference / possible match
KS HiLo Premier Rack 01 / Upright 02 / Connection 03 / Beam reference Short rectangular slots Three things to check Two rows of short rectangular openings. Raised central rib between the slot rows. Compare connector height and hook layout.
Upright colour clues Blue
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Premier Rack and Rackplan are separate systems.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

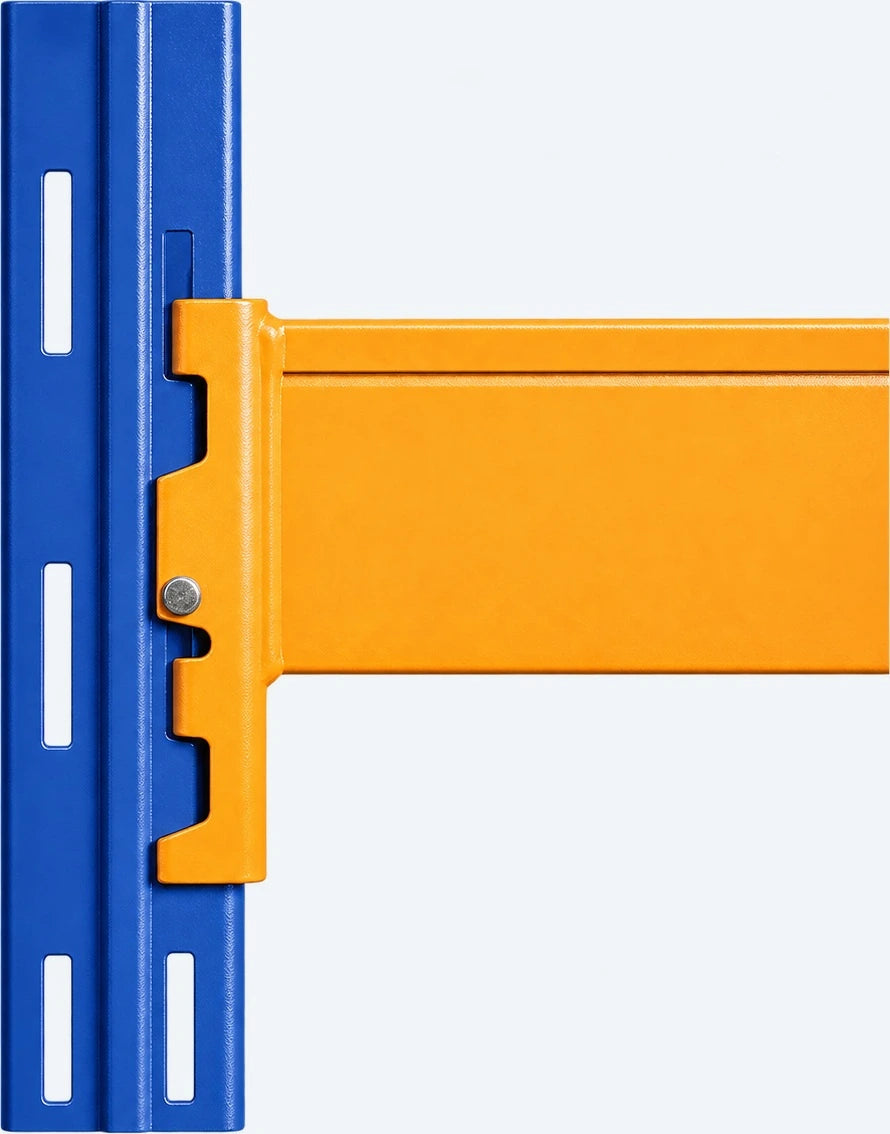

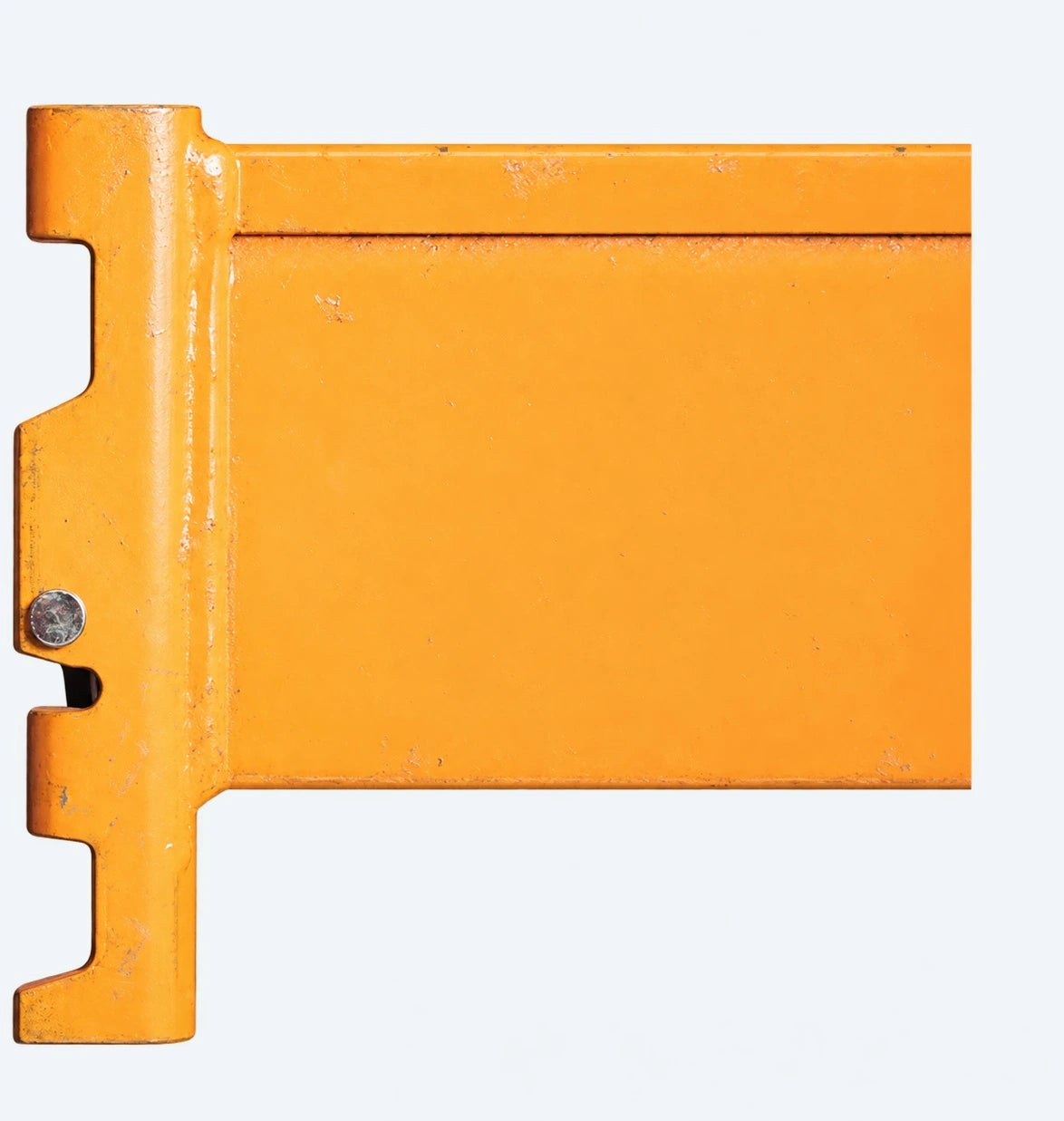

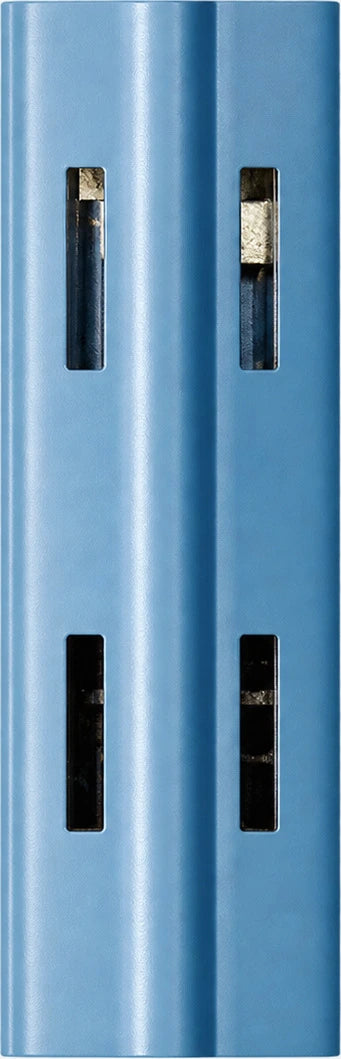

08 + KS HiLo Rackplan Long, narrow slots
System reference / possible match
KS HiLo Rackplan 01 / Upright 02 / Connection 03 / Beam reference Long, narrow slots Three things to check Two rows of long, narrow vertical slots. Long gaps between each repeated opening. Check the stepped connector edge.
Upright colour clues Blue
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Long slots are the first clue. Check the connector next.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

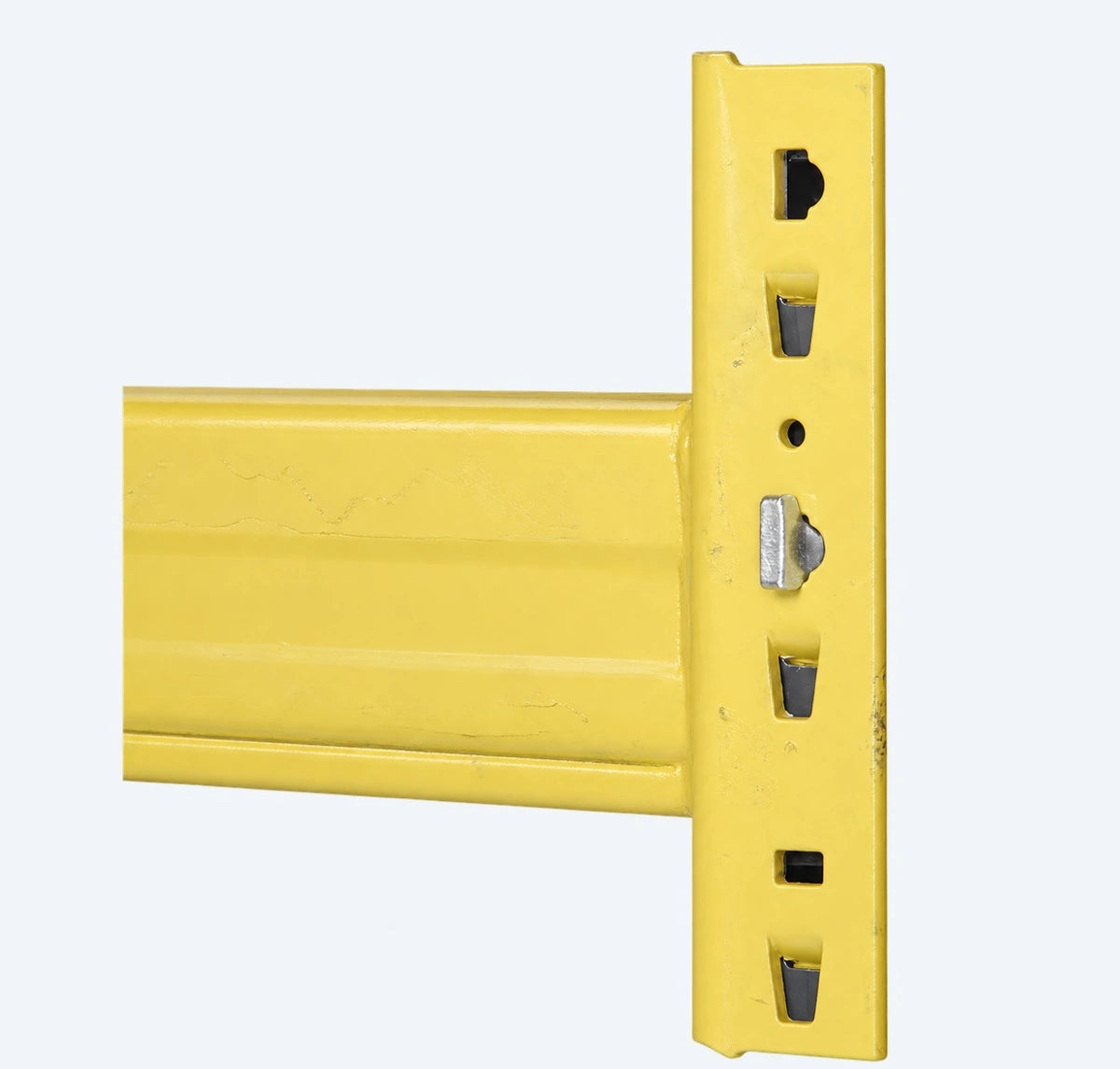

09 +
System reference / possible match

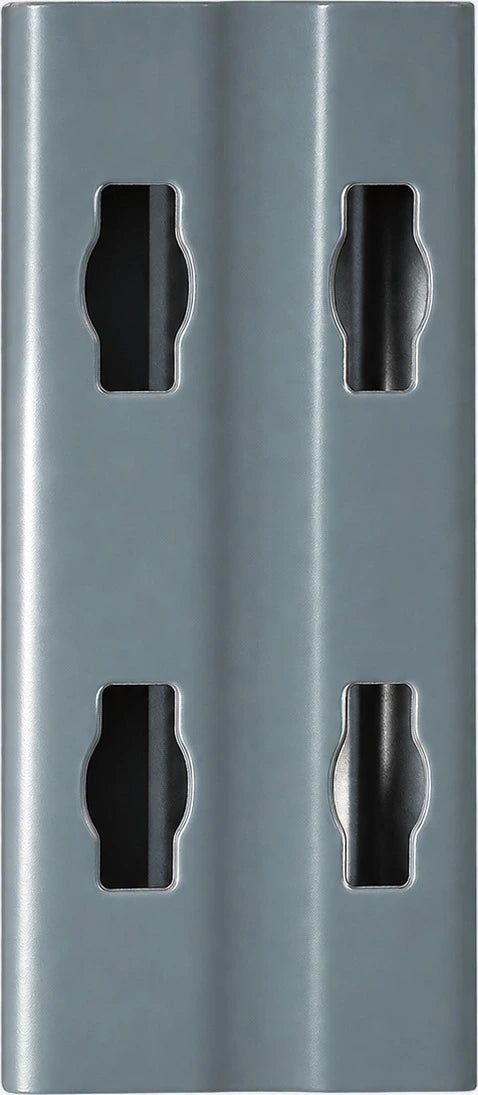

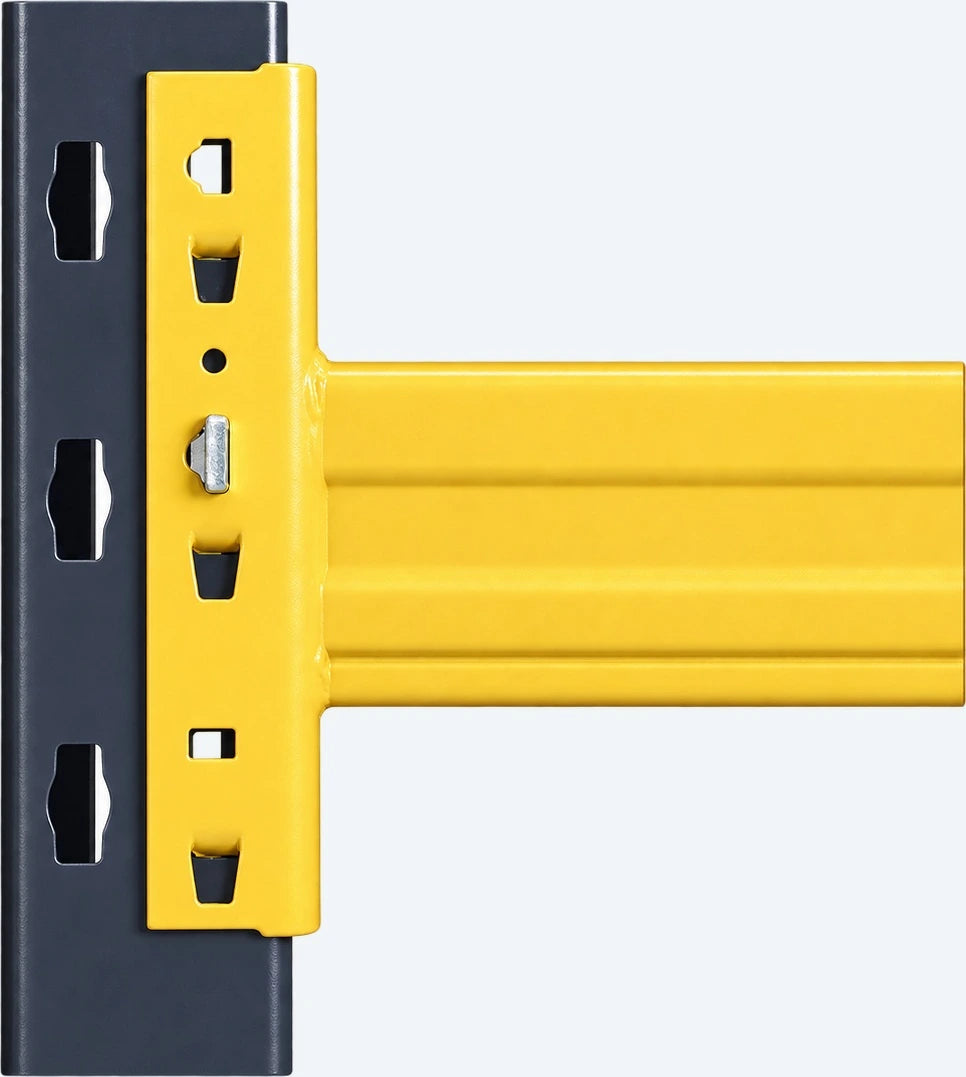

Link 51 01 / Upright 02 / Connection 03 / Beam reference Waisted slots Three things to check Twin rows of shaped, waisted openings. Look for the stepped sides of each slot. Check the Link 51 connector and beam lock.
Upright colour clues Dark grey
Beam colour clues Yellow Finishes vary. Use the shape and markings to confirm.
Palletstor is a common Link 51 range. Confirm the series and duty.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

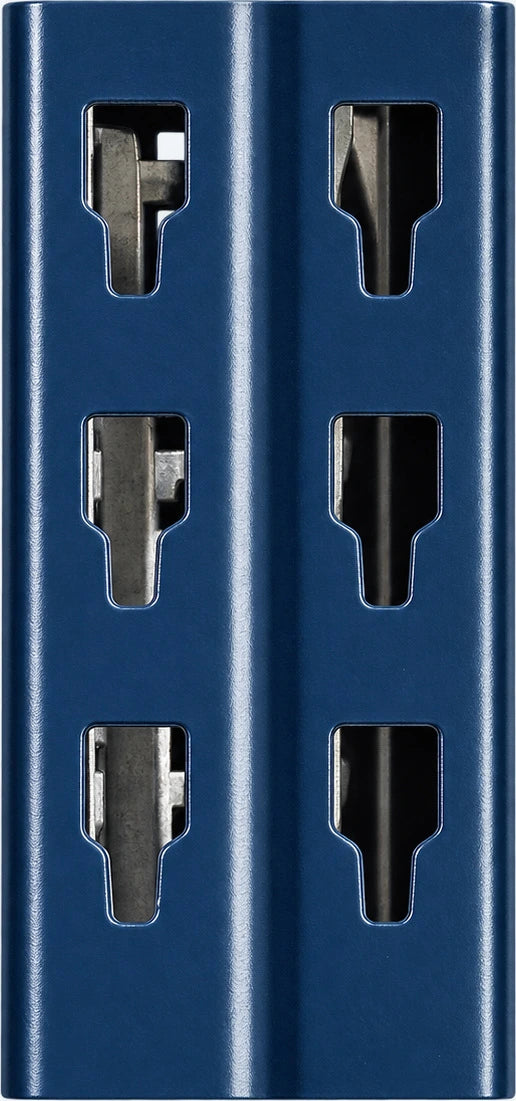

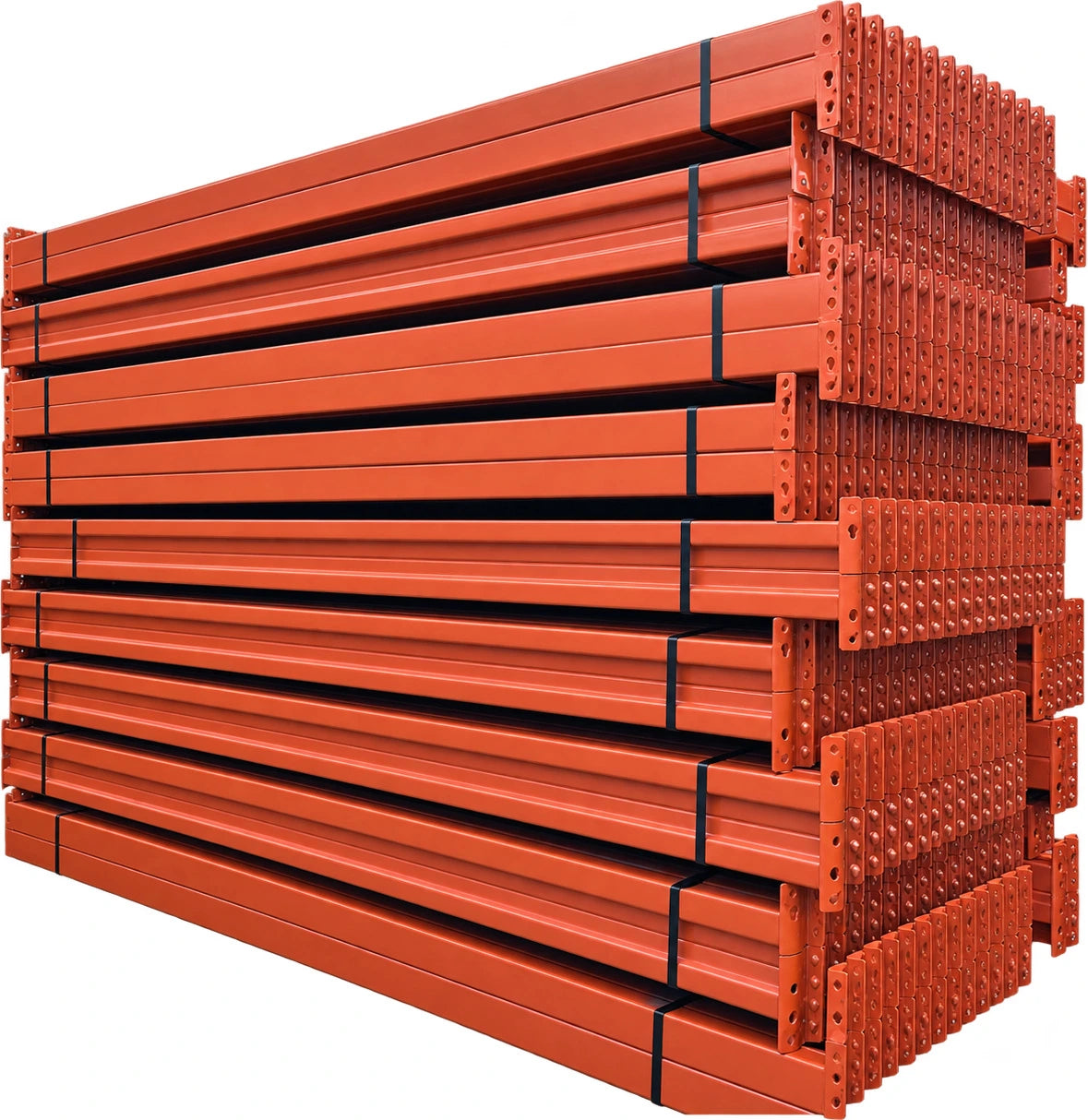

10 + Mecalux Wide top, narrow stem
System reference / possible match

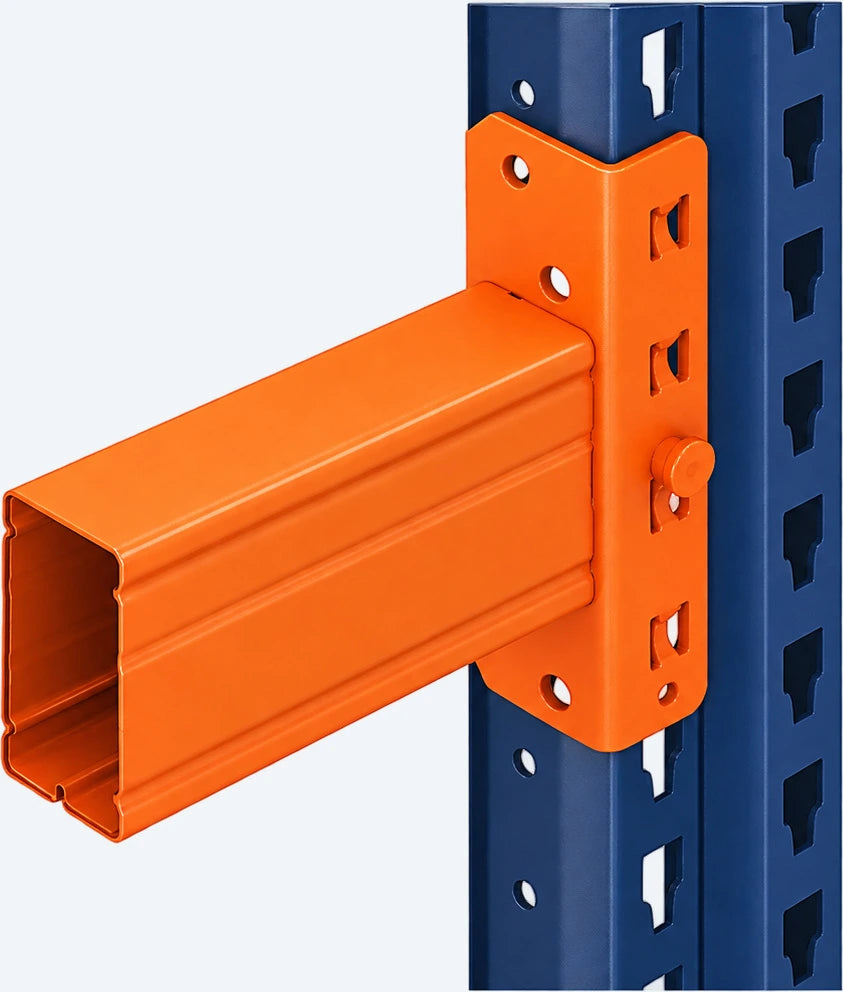

Mecalux 01 / Upright 02 / Connection 03 / Beam reference Wide top, narrow stem Three things to check Two rows of fork-like / T-shaped openings. Broad shoulders above a narrow lower stem. Read the stamped upright identification.
Upright colour clues Blue
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Photograph the upright stamp as well as the slot pattern.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

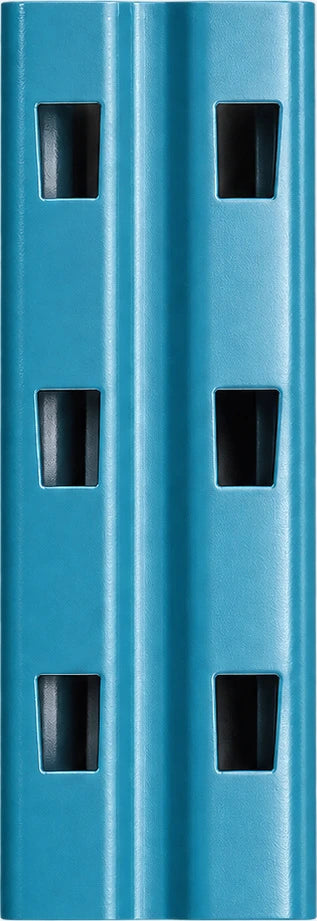

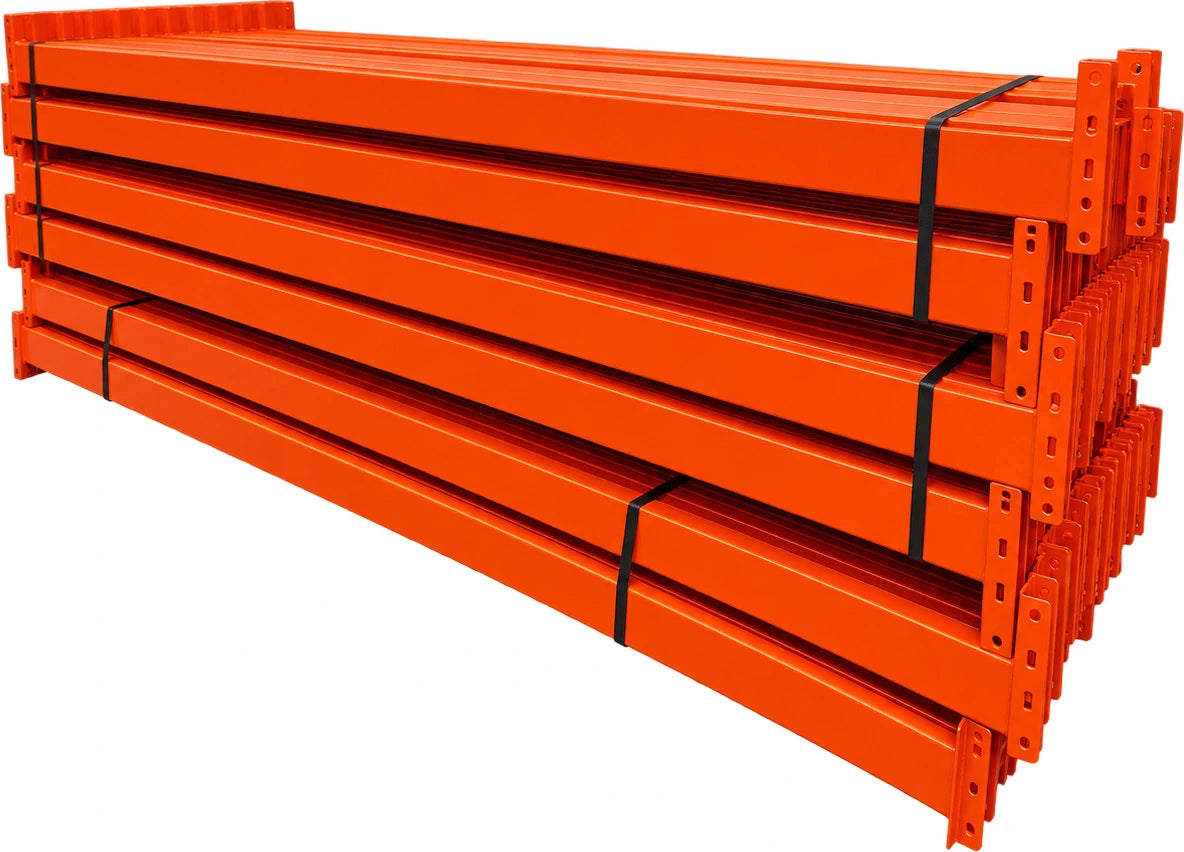

11 + PSS P85 / Stronglock Paired rectangular slots
System reference / possible match

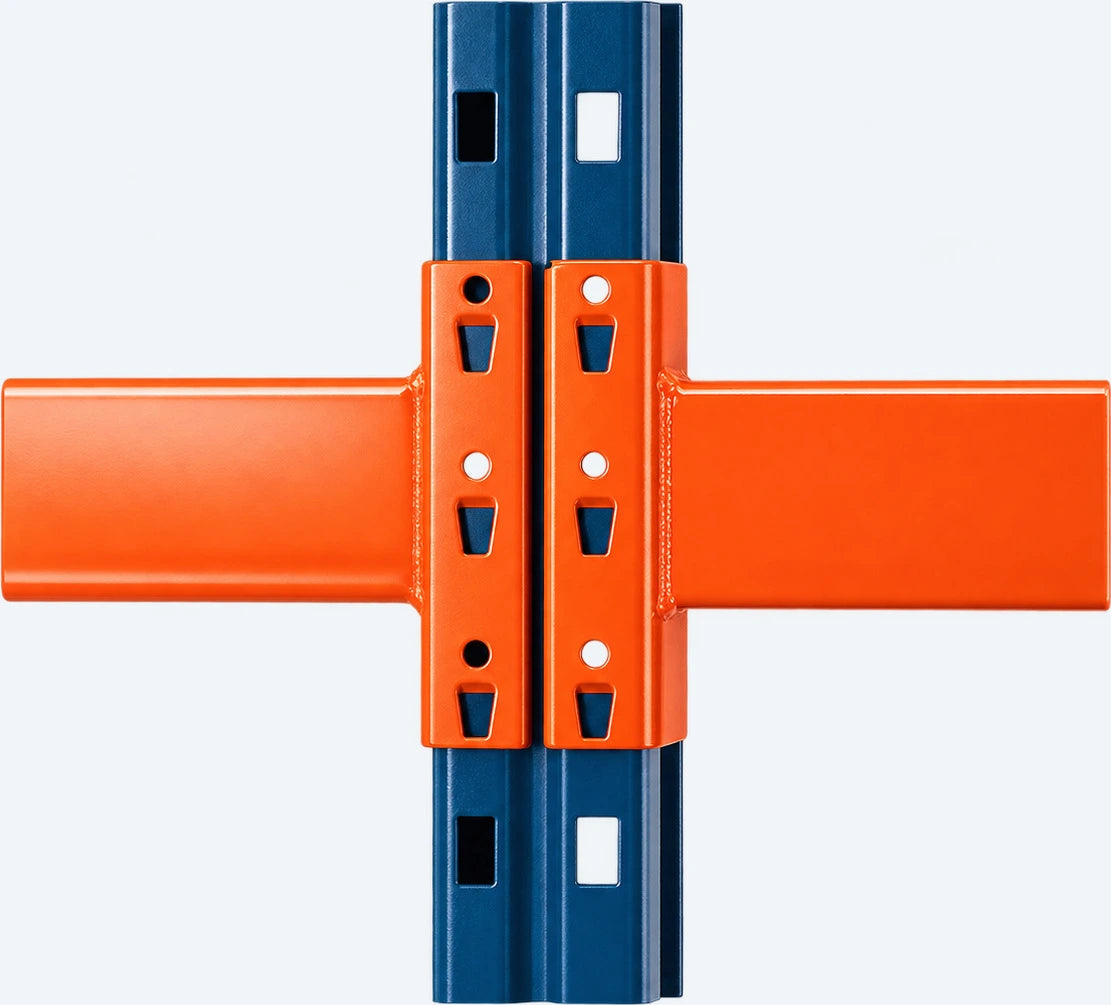

PSS P85 / Stronglock 01 / Upright 02 / Connection 03 / Beam reference Paired rectangular slots Three things to check Two aligned rows of rectangular openings. Check the ridged front profile in side view. Match the connector and its safety lock.
Upright colour clues Blue
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Also known as Planned Storage P85. Do not confuse it with PSS M-series.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

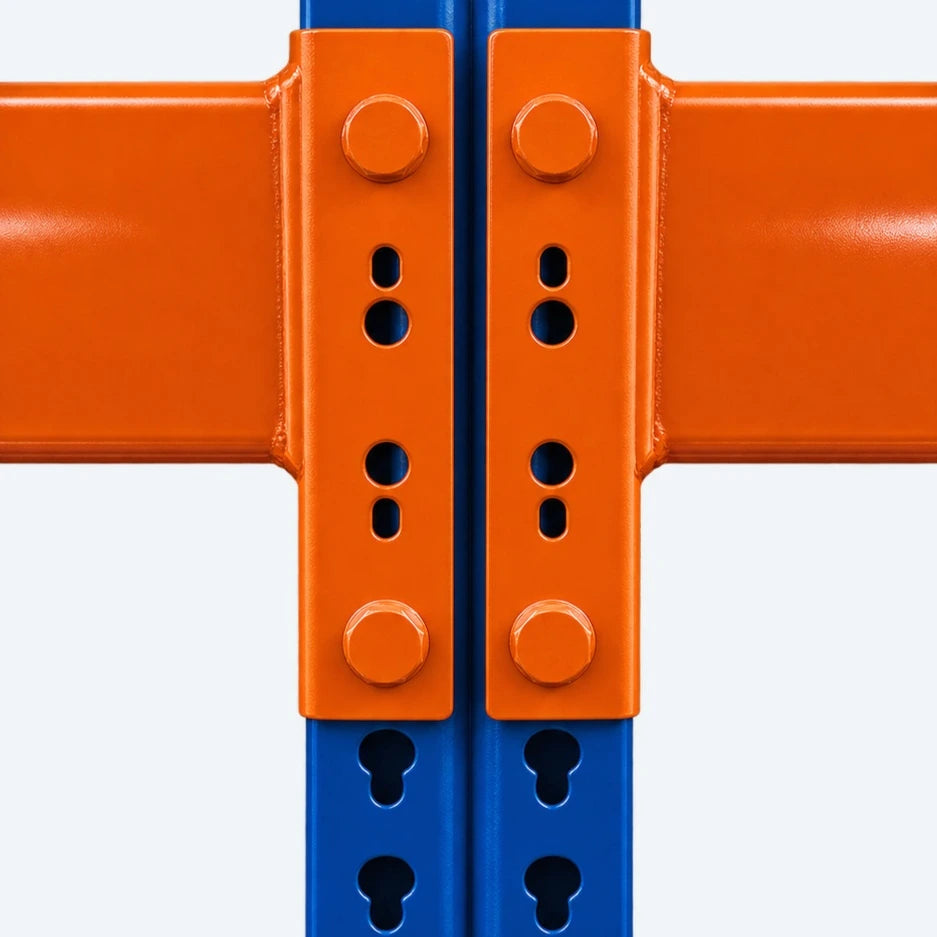

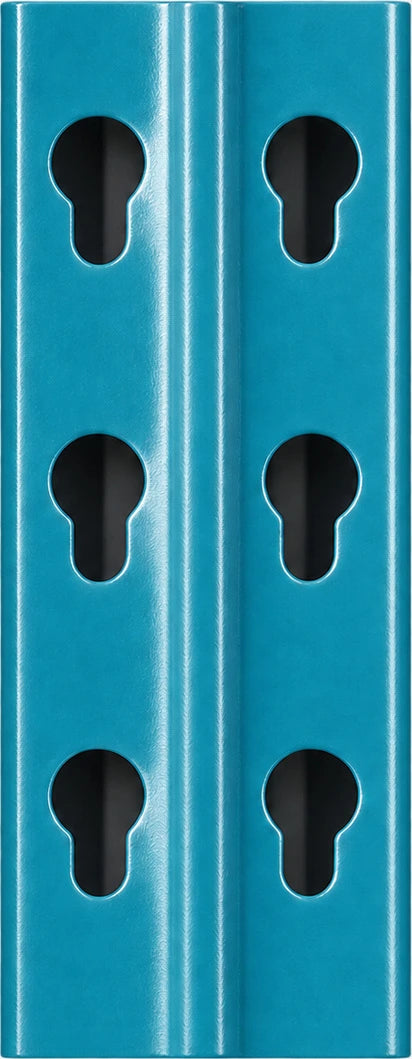

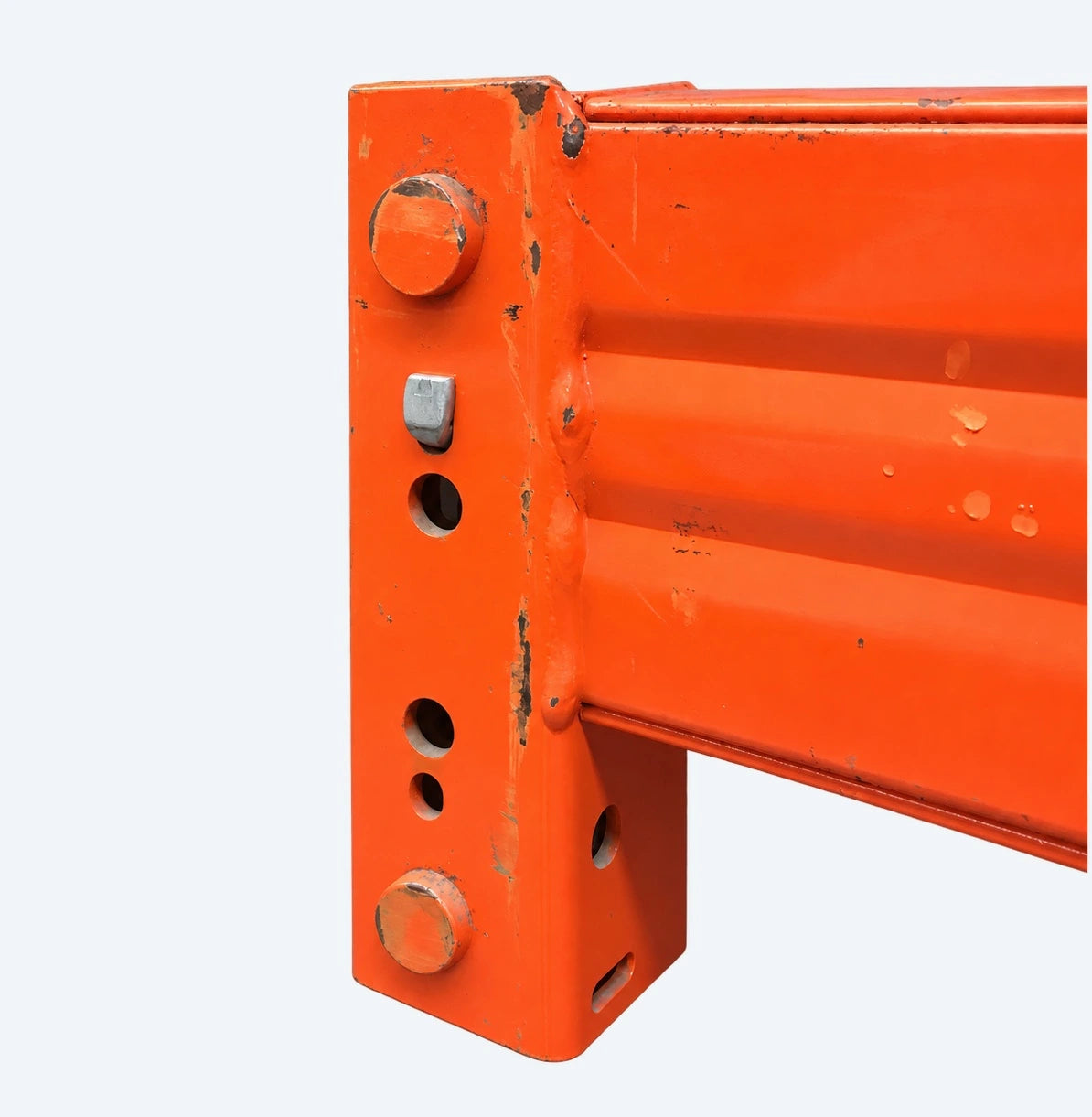

12 + Polypal Round-headed keyholes
System reference / possible match
Polypal 01 / Upright 02 / Connection 03 / Beam reference Round-headed keyholes Three things to check Two rows of round-headed keyholes. Each round opening narrows into a stem. Check the round stud-style beam connection.
Upright colour clues Blue / teal
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Confirm the Stockpal generation and the stud-style connector.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

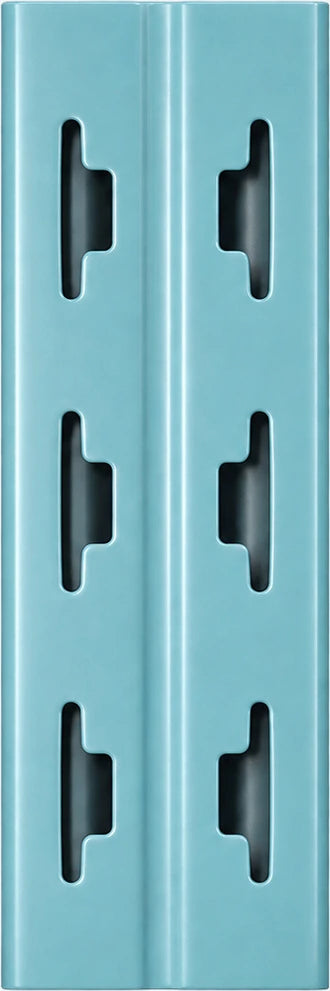

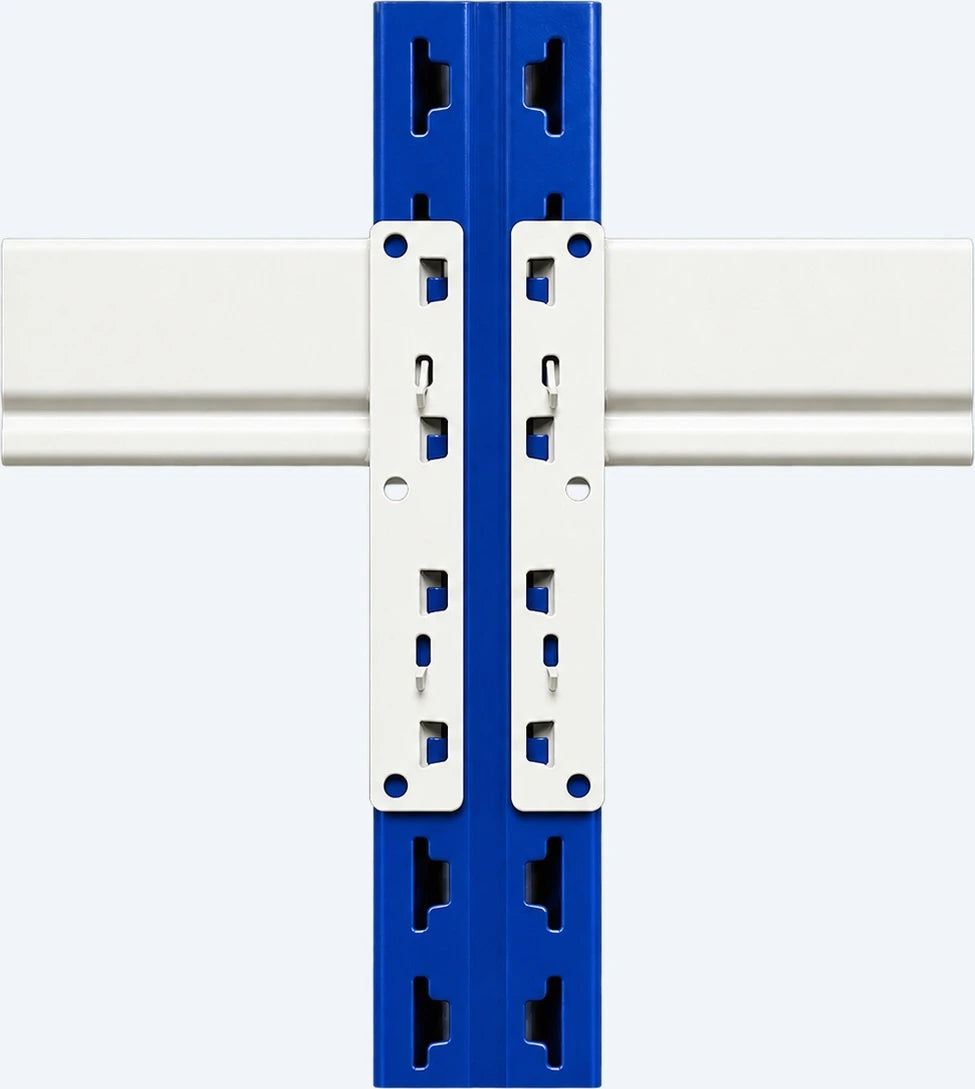

13 + Provost Offset / stepped slots
System reference / possible match

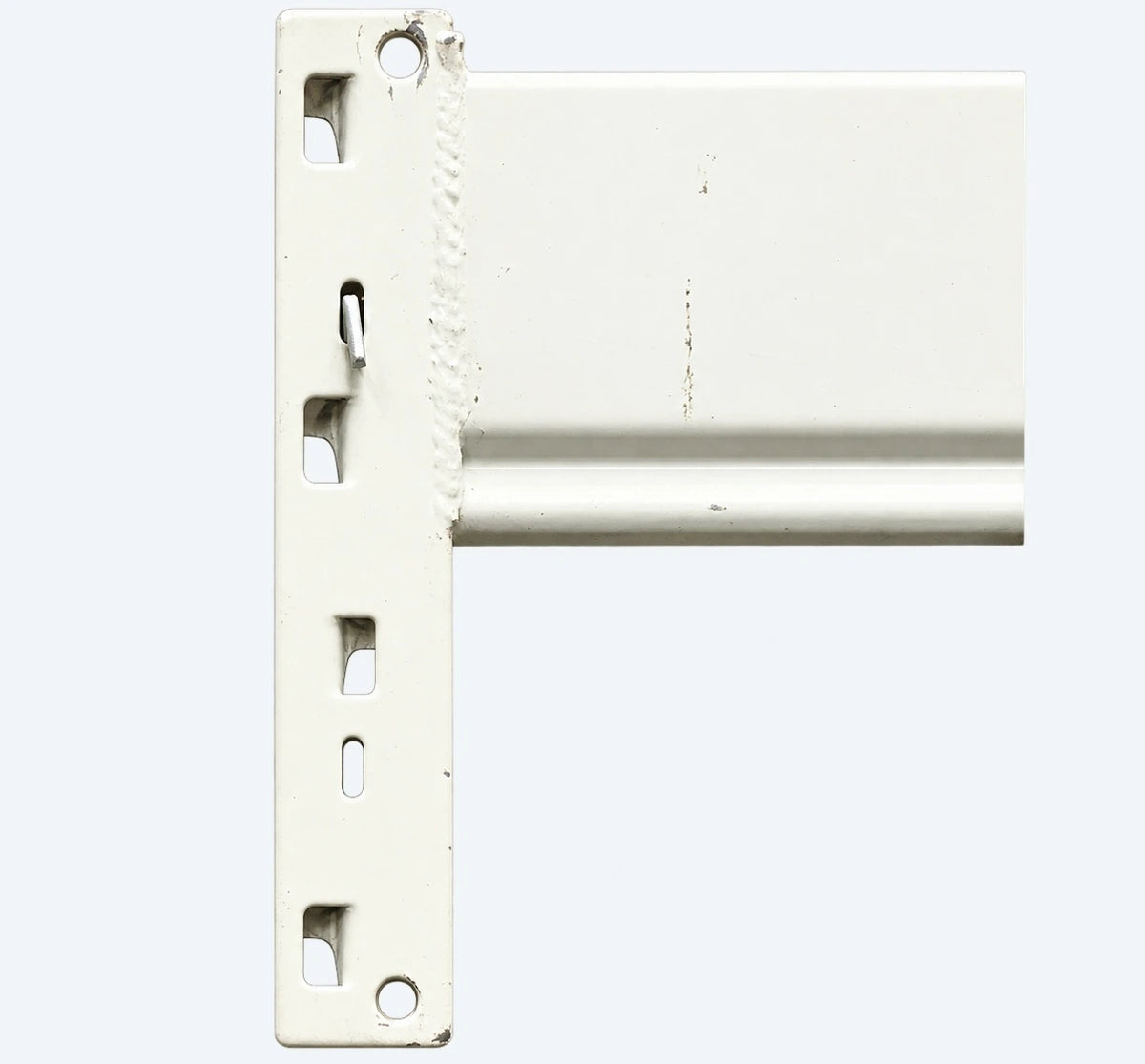

Provost 01 / Upright 02 / Connection 03 / Beam reference Offset / stepped slots Three things to check Two rows of offset, stepped openings. Compare the direction of each slot shape. Look for the duty stamp on the upright.
Upright colour clues Blue / galvanised
Beam colour clues Yellow on Propal 3 Finishes vary. Use the shape and markings to confirm.
Finishes vary by generation. Photograph the duty stamp.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

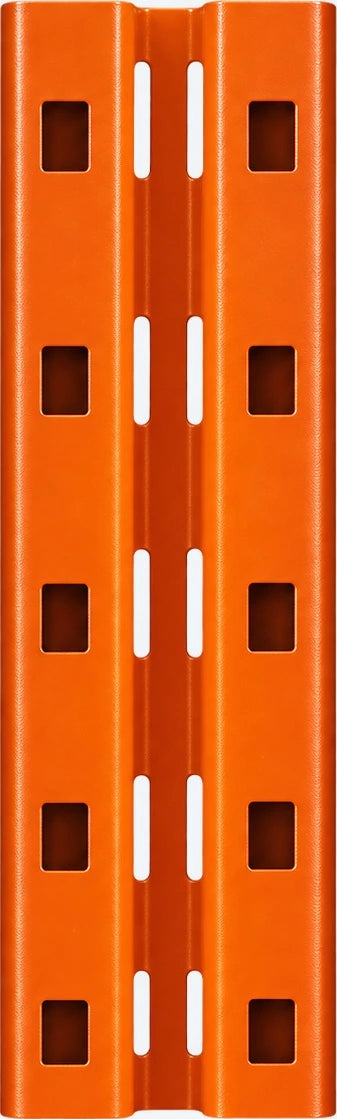

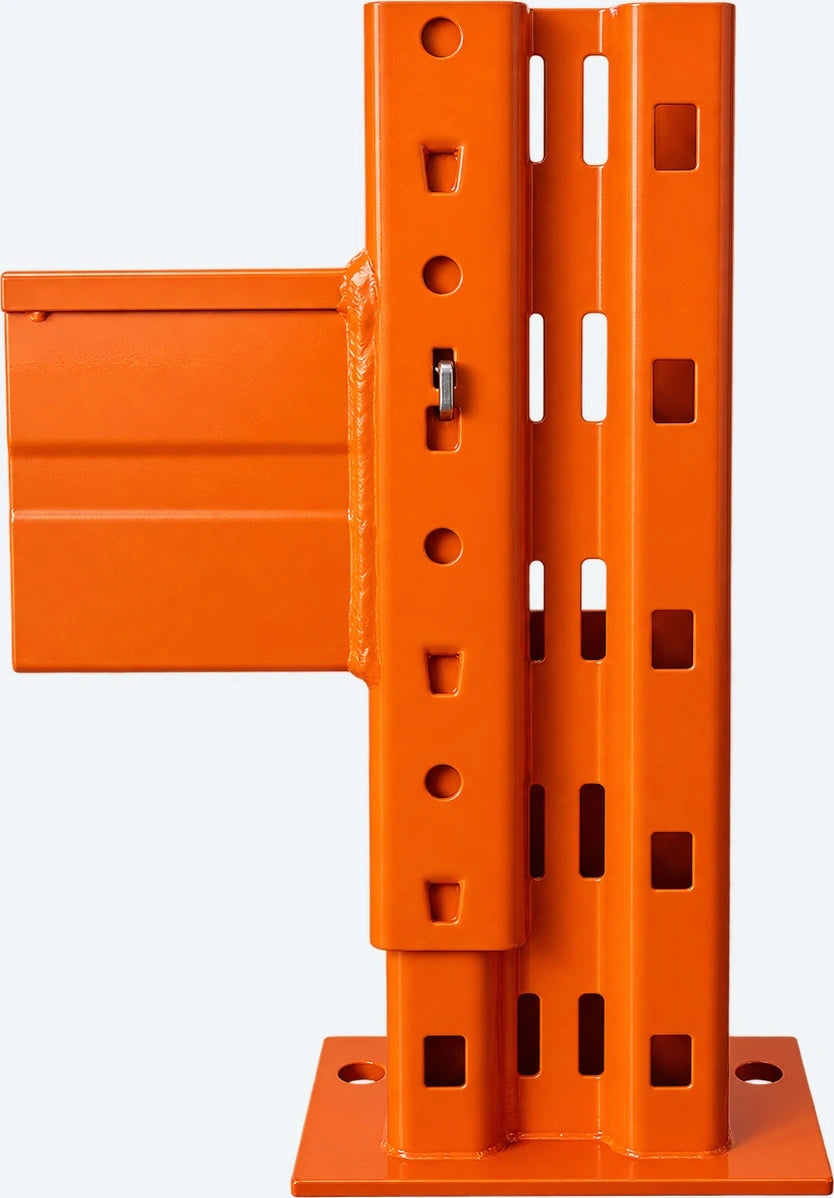

14 + Redirack HD 100 mm face / 65 mm depth
System reference / possible match
Redirack HD 01 / Upright 02 / Connection 03 / Beam reference 100 mm face / 65 mm depth Three things to check Measure the upright: 100 mm wide x 65 mm deep. Two narrow slot columns sit inside the centre channel. Record the duty stamp and welded / bolted frame type.
Upright colour clues Orange
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Legacy welded HD also measures 100 × 65 mm. Record the generation and construction.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

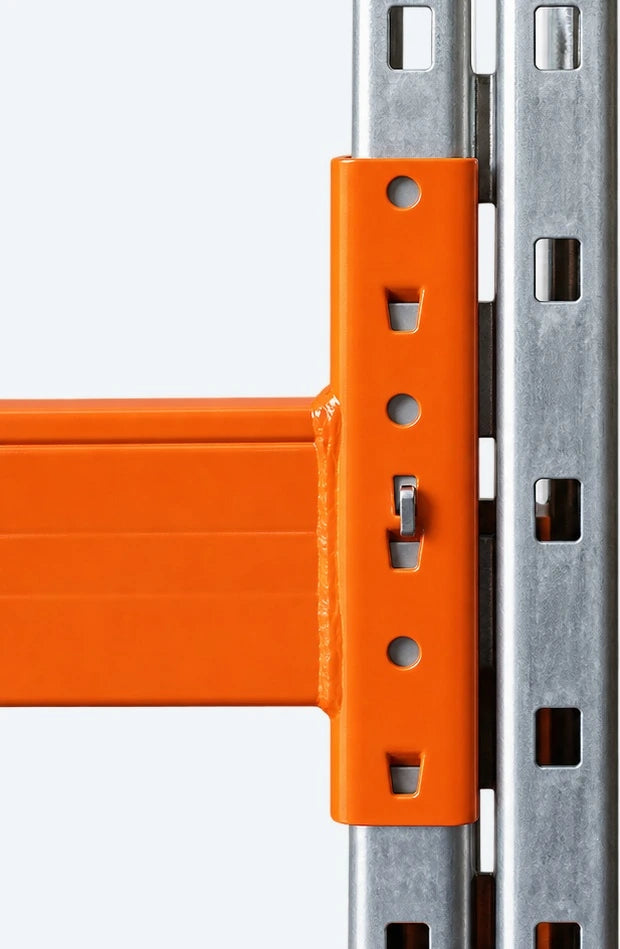

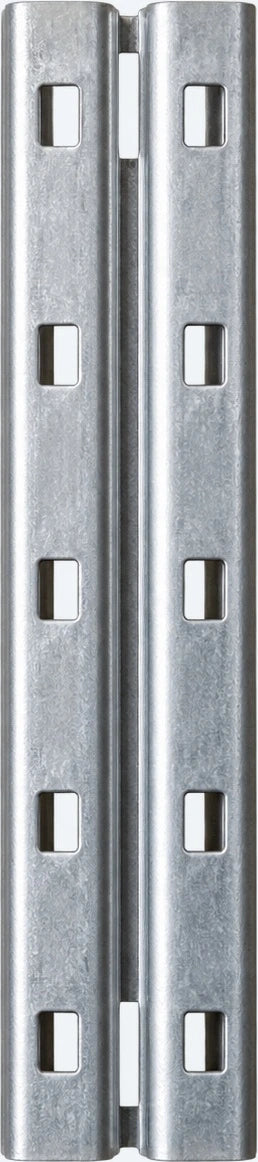

15 + Redirack SD Current SD: 84 × 65 mm
System reference / possible match
Redirack SD 01 / Upright 02 / Connection 03 / Beam reference Current SD: 84 × 65 mm Three things to check Measure current SD: 84 mm wide x 65 mm deep. Compare the centre channel and full hole pattern. Record the SD stamp and welded / bolted construction.
Upright colour clues Galvanised shown
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Current SD is 84 × 65 mm. Legacy welded SD is 83 × 51 mm. Confirm which generation you have.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

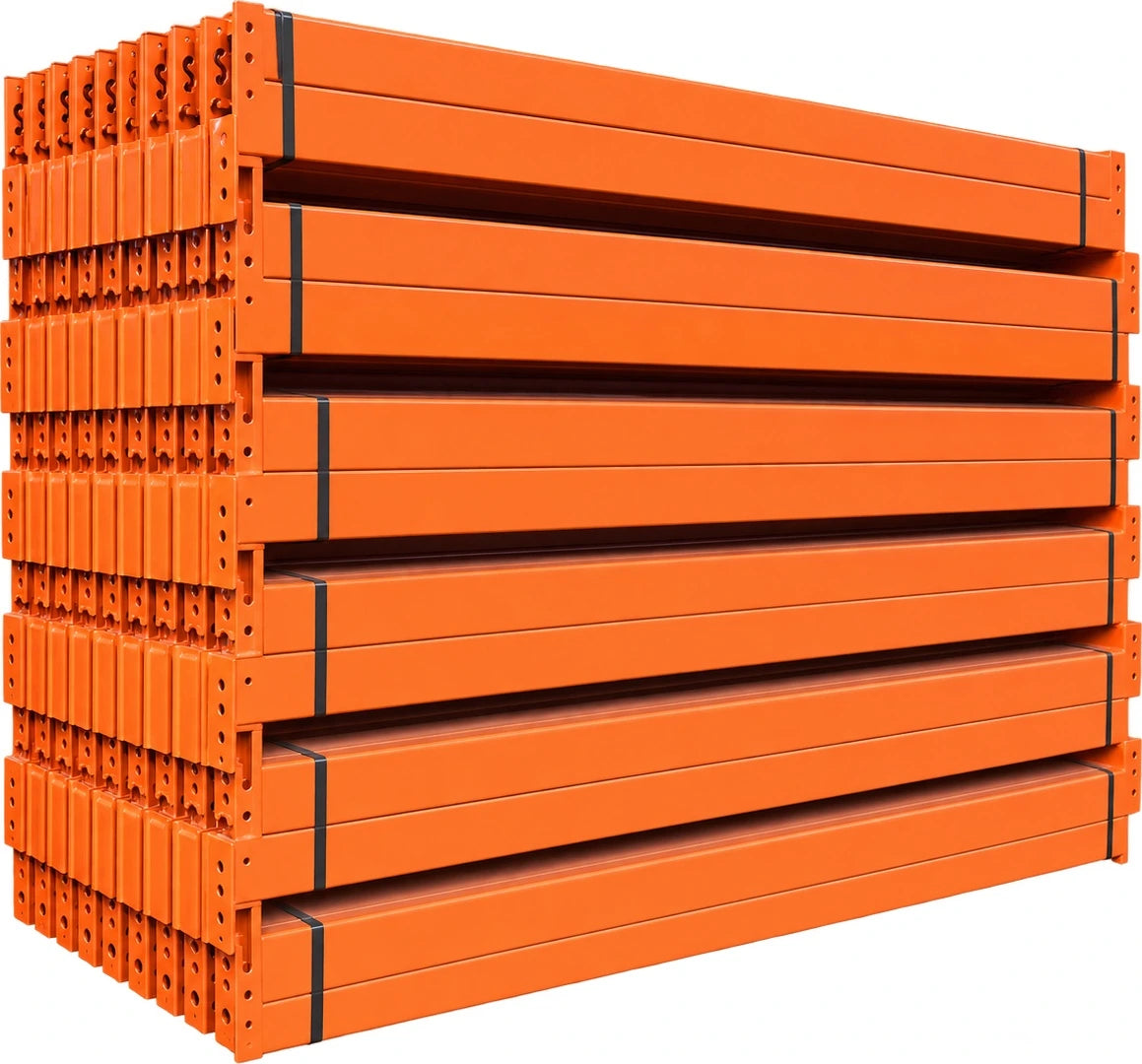

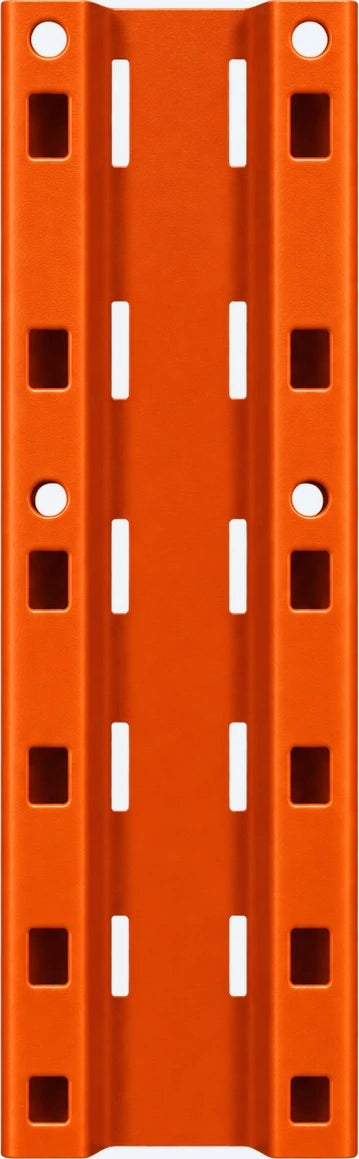

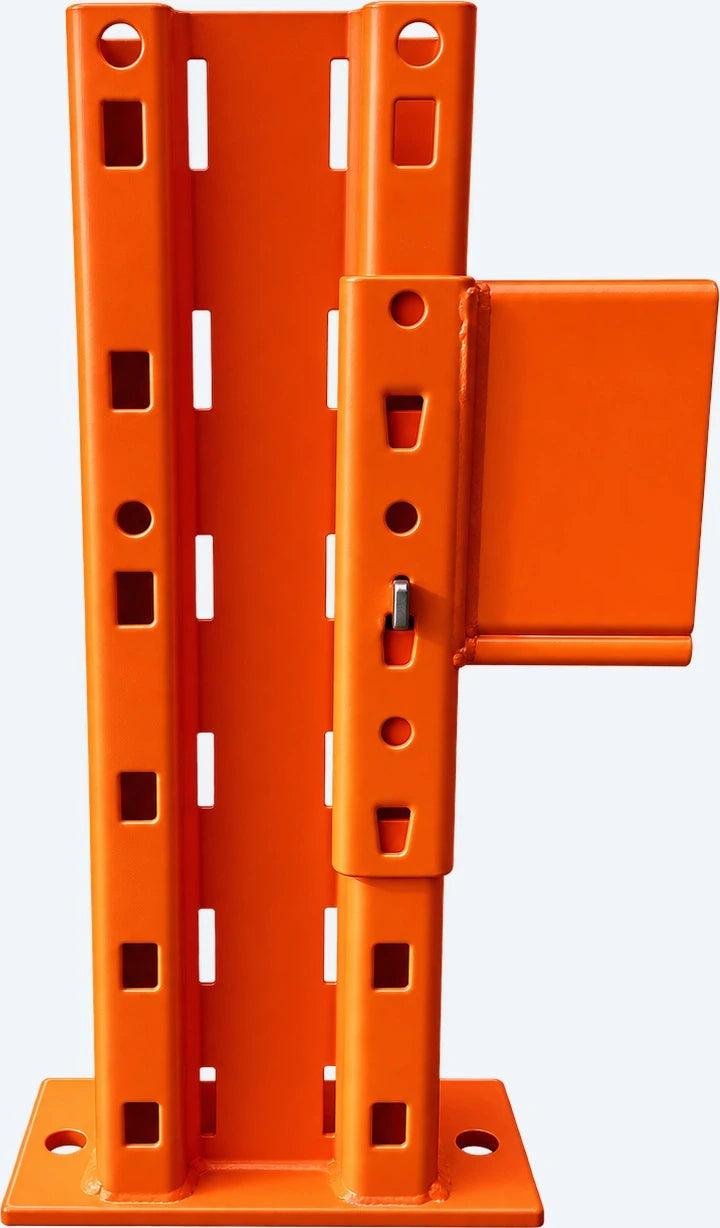

16 + Redirack SHD 125 mm face / 65 mm depth
System reference / possible match
Redirack SHD 01 / Upright 02 / Connection 03 / Beam reference 125 mm face / 65 mm depth Three things to check Measure the upright: 125 mm wide x 65 mm deep. Wider centre face; compare the two narrow slot columns. Confirm SHD identification and welded frame construction.
Upright colour clues Orange
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Confirm the SHD stamp and welded construction. Width does not establish load capacity.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

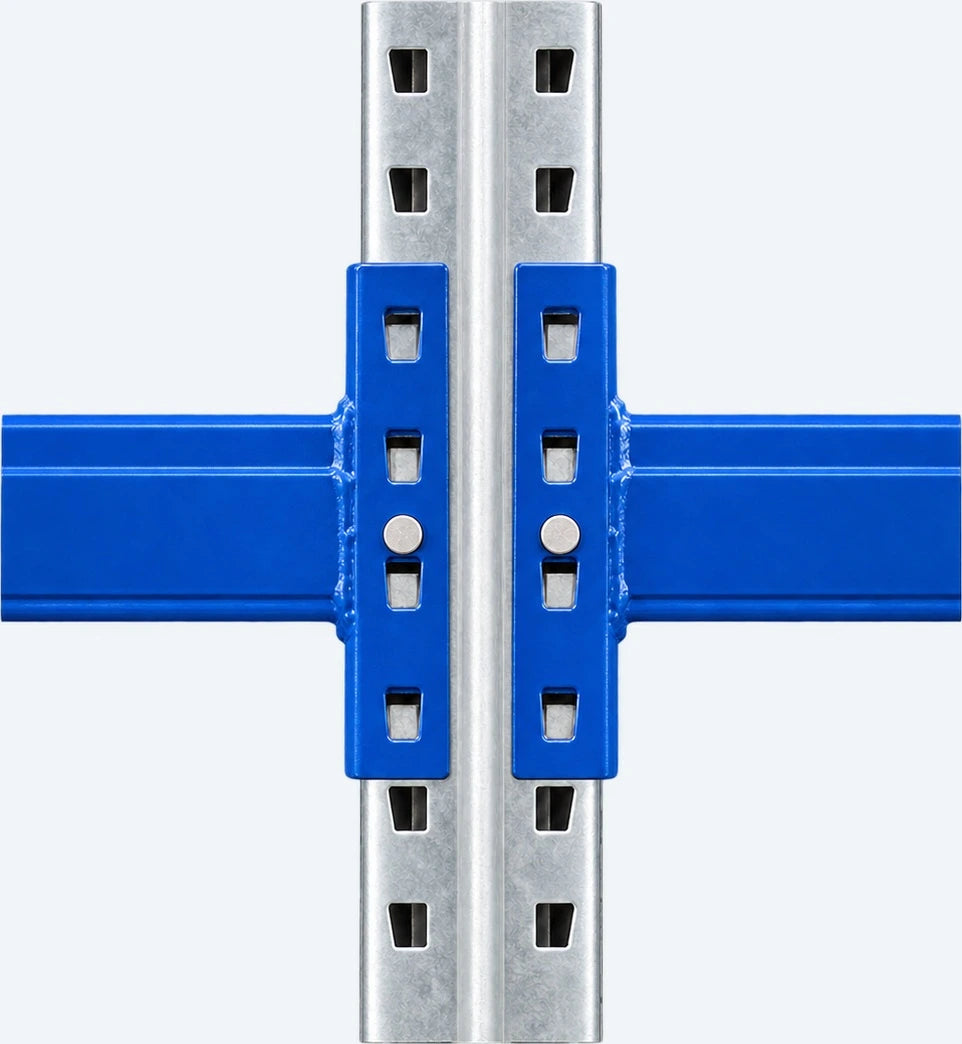

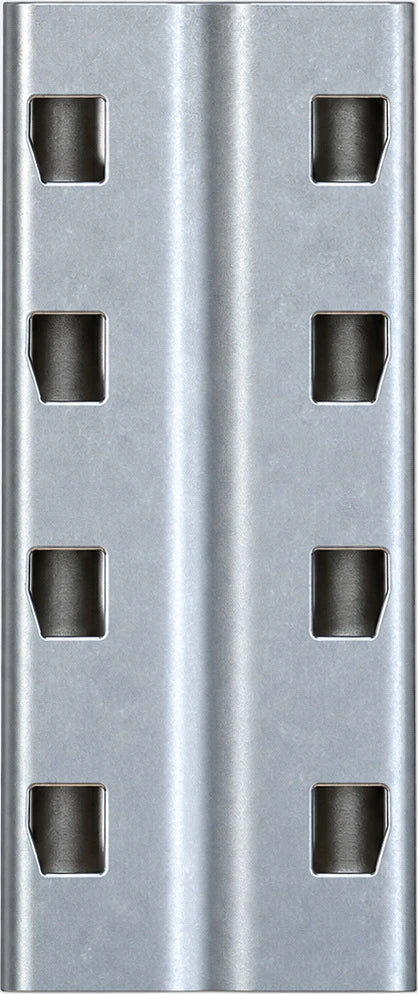

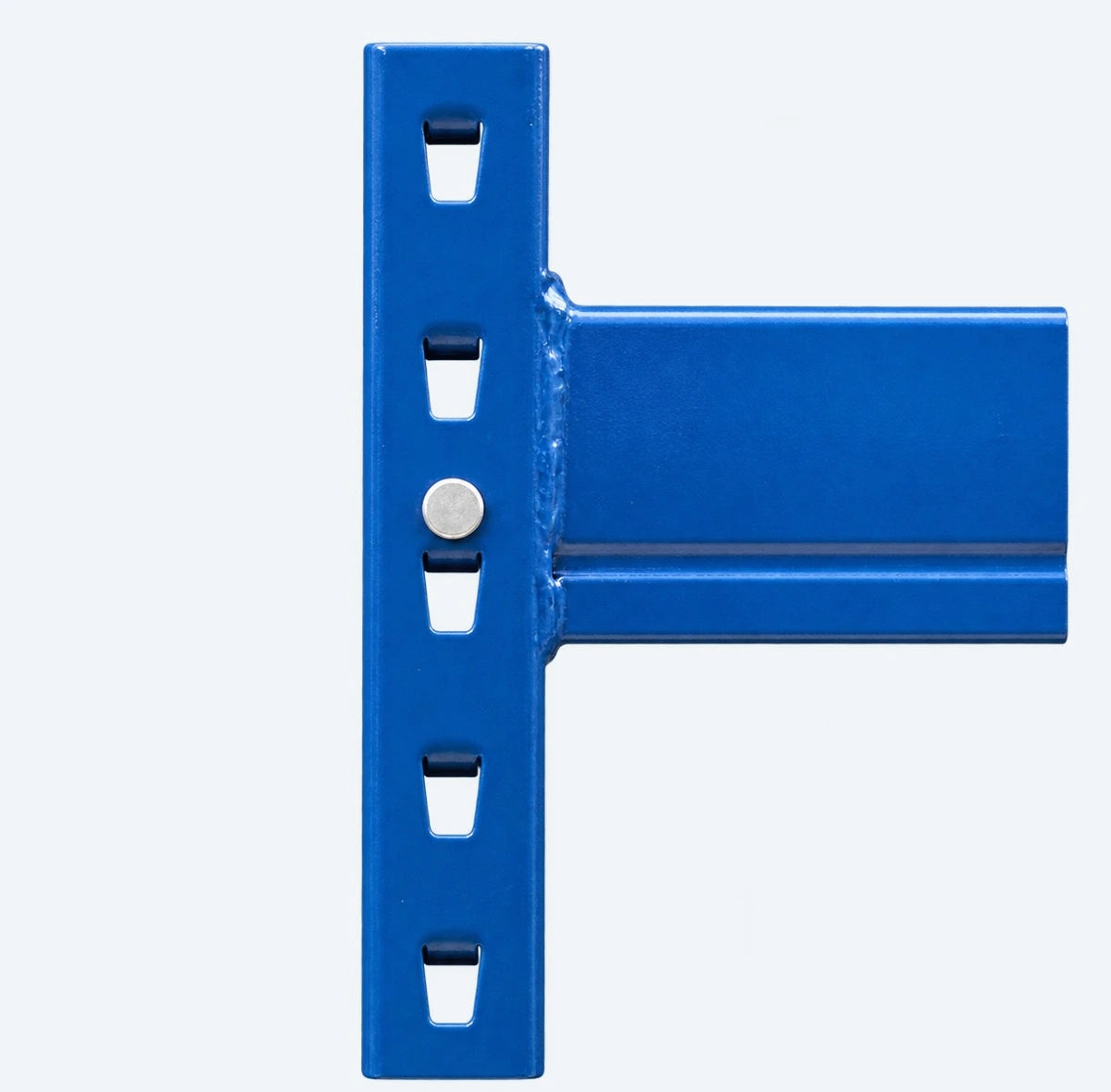

17 + SSI Schaefer Twin short slots
System reference / possible match
SSI Schaefer 01 / Upright 02 / Connection 03 / Beam reference Twin short slots Three things to check Two rows of short, shaped rectangular slots. Often a galvanised / silver upright. Match the PR-series label and connector.
Upright colour clues Galvanised / light grey
Beam colour clues Blue / yellow Finishes vary. Use the shape and markings to confirm.
Schaefer covers several systems. Confirm the exact PR-series label.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

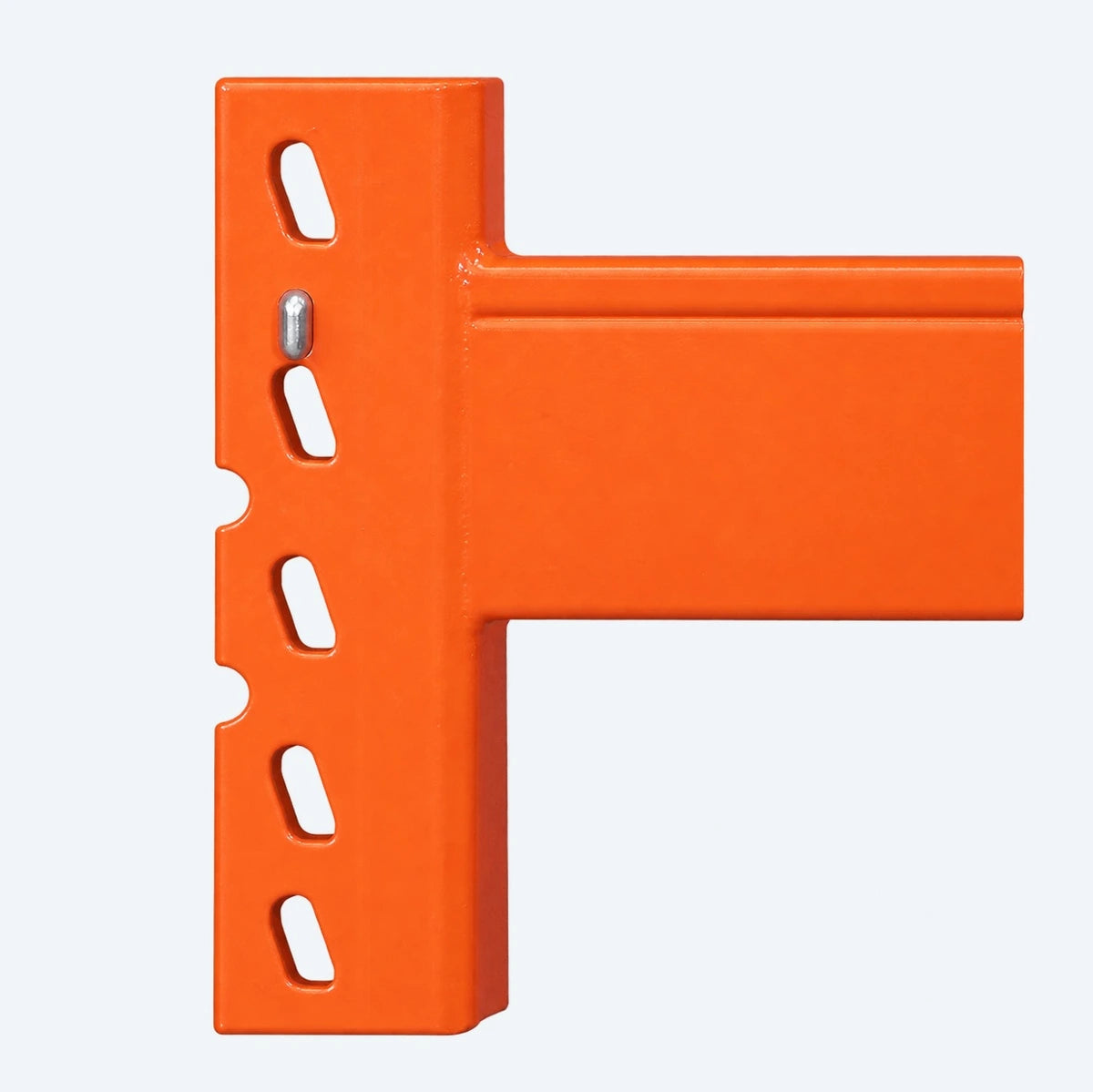

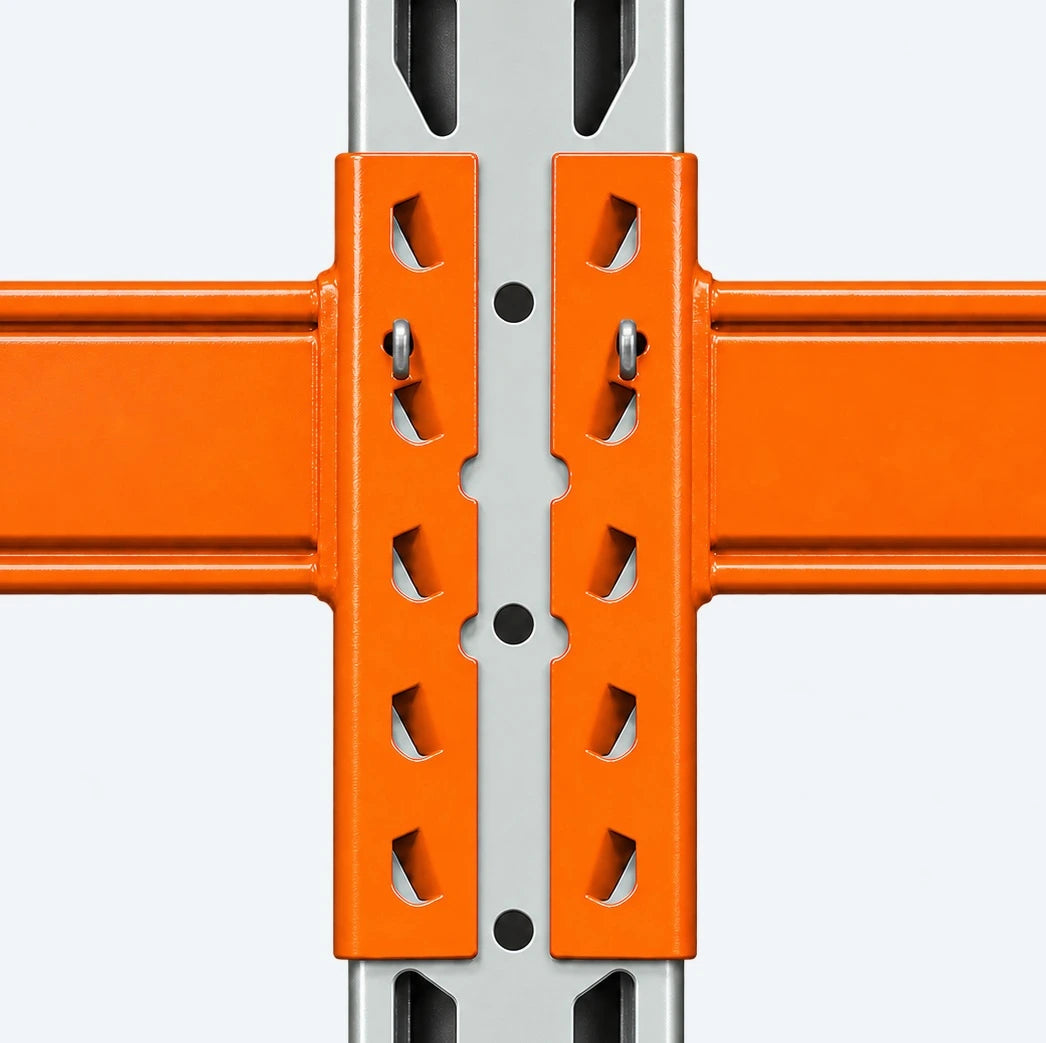

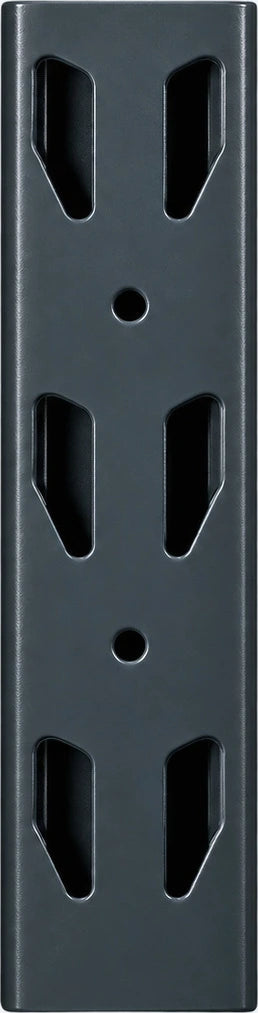

18 + Sperrin Tapered, slanted slots
System reference / possible match
Sperrin 01 / Upright 02 / Connection 03 / Beam reference Tapered, slanted slots Three things to check Two rows of tapered, slanted openings. Small round holes run down the centre. Check the generation and connector shape.
Upright colour clues Blue
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Mk1 and Mk2 differ. Confirm the generation and connector.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.

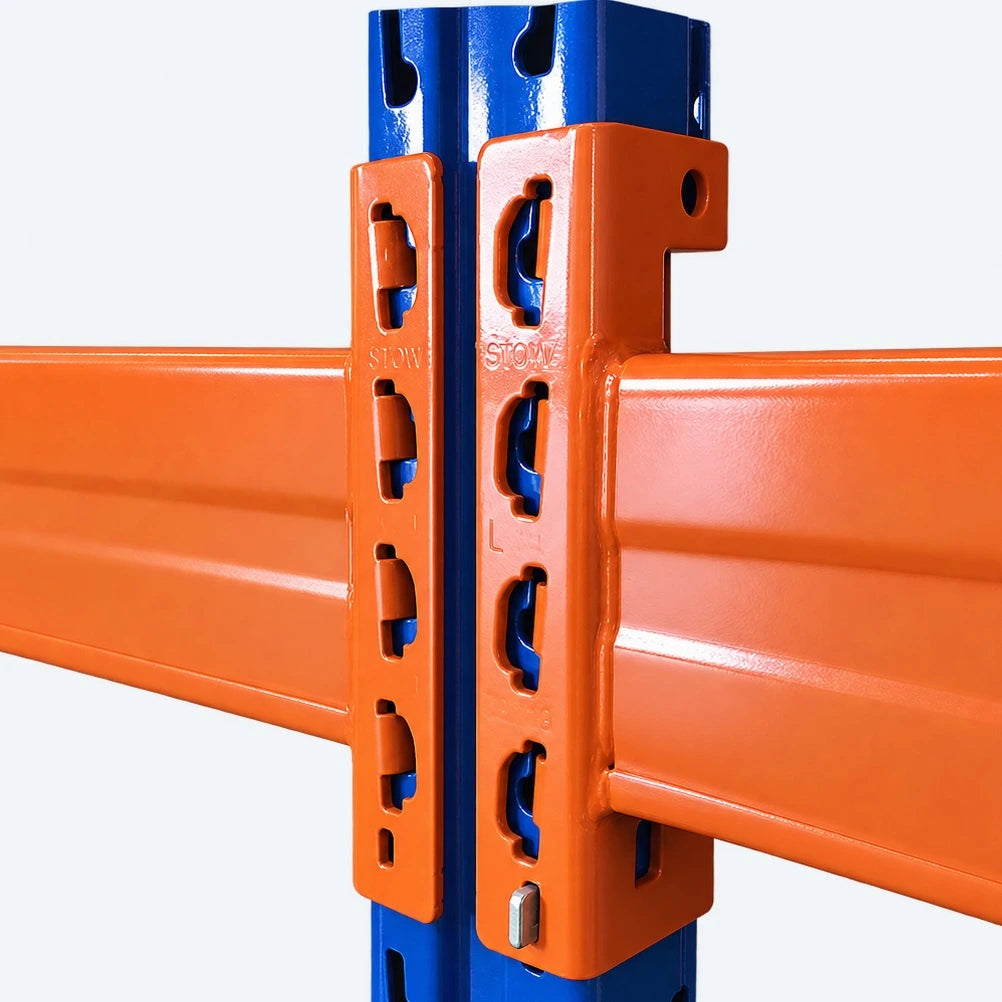

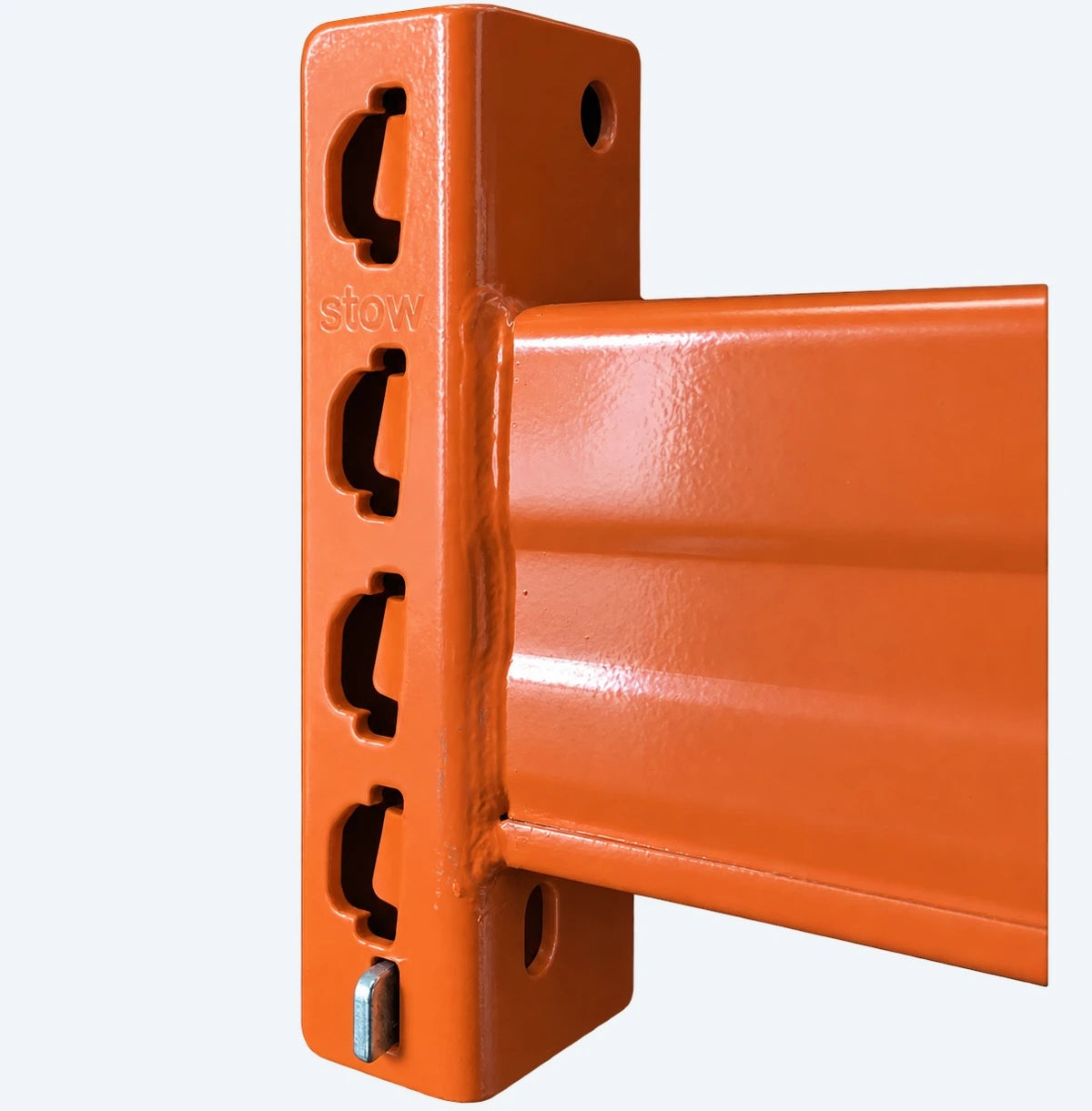

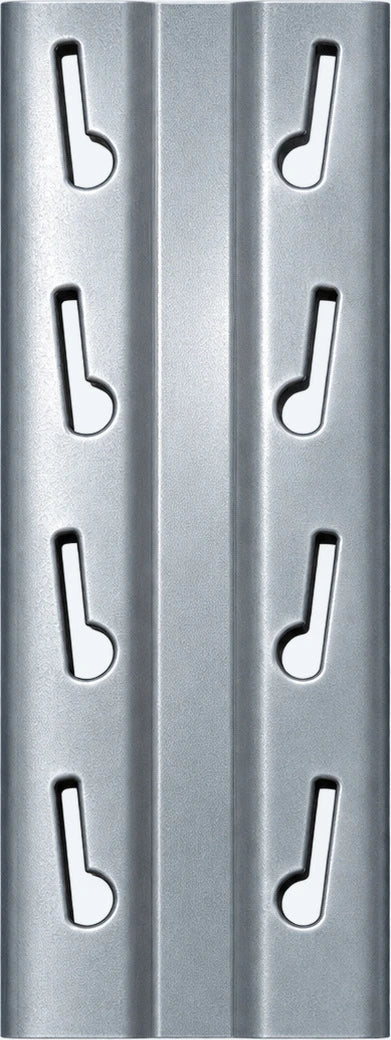

19 + Stow Hook / P-shaped slots
System reference / possible match
Stow 01 / Upright 02 / Connection 03 / Beam reference Hook / P-shaped slots Three things to check Two rows of distinctive hooked openings. Look for the inverted-P-like outline. Check the Stow marking and beam lock.
Upright colour clues Blue / galvanised
Beam colour clues Orange Finishes vary. Use the shape and markings to confirm.
Compare the complete slot profile and the beam lock.
Visual reference only. Exact series, component compatibility and load capacity require confirmation.
i A visual match is a starting point. Confirm the exact series, connector and load data with our team before specifying parts.
