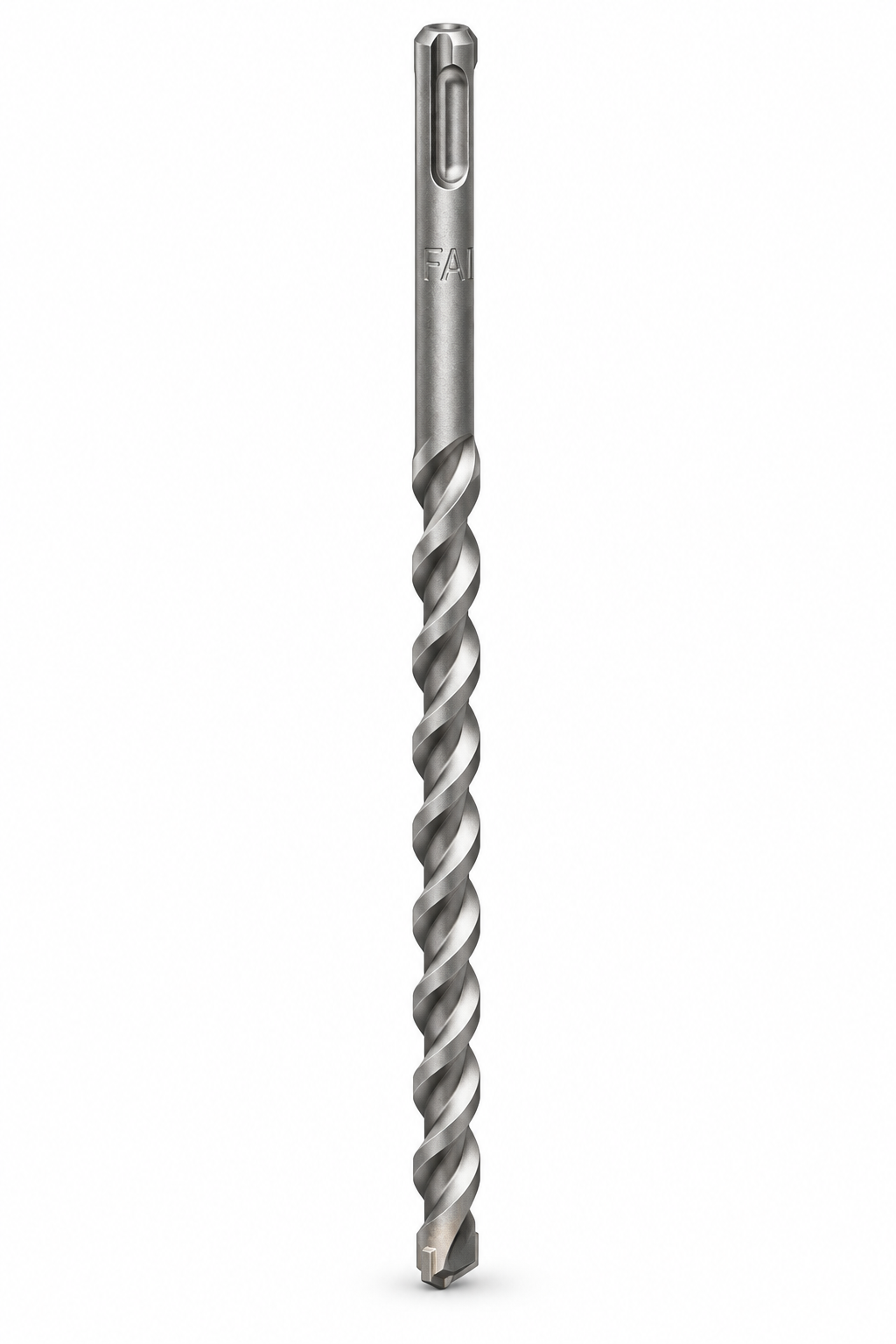

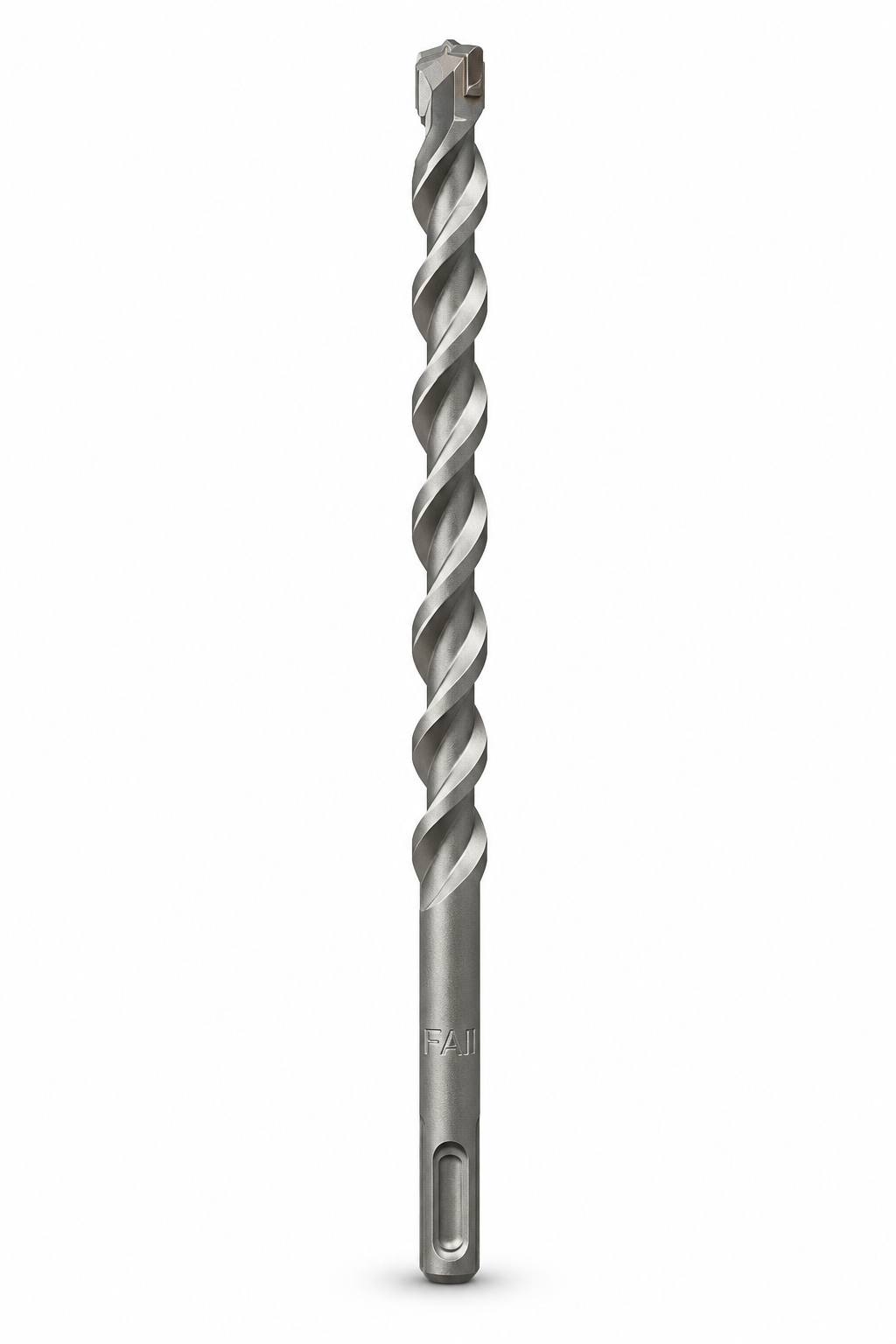

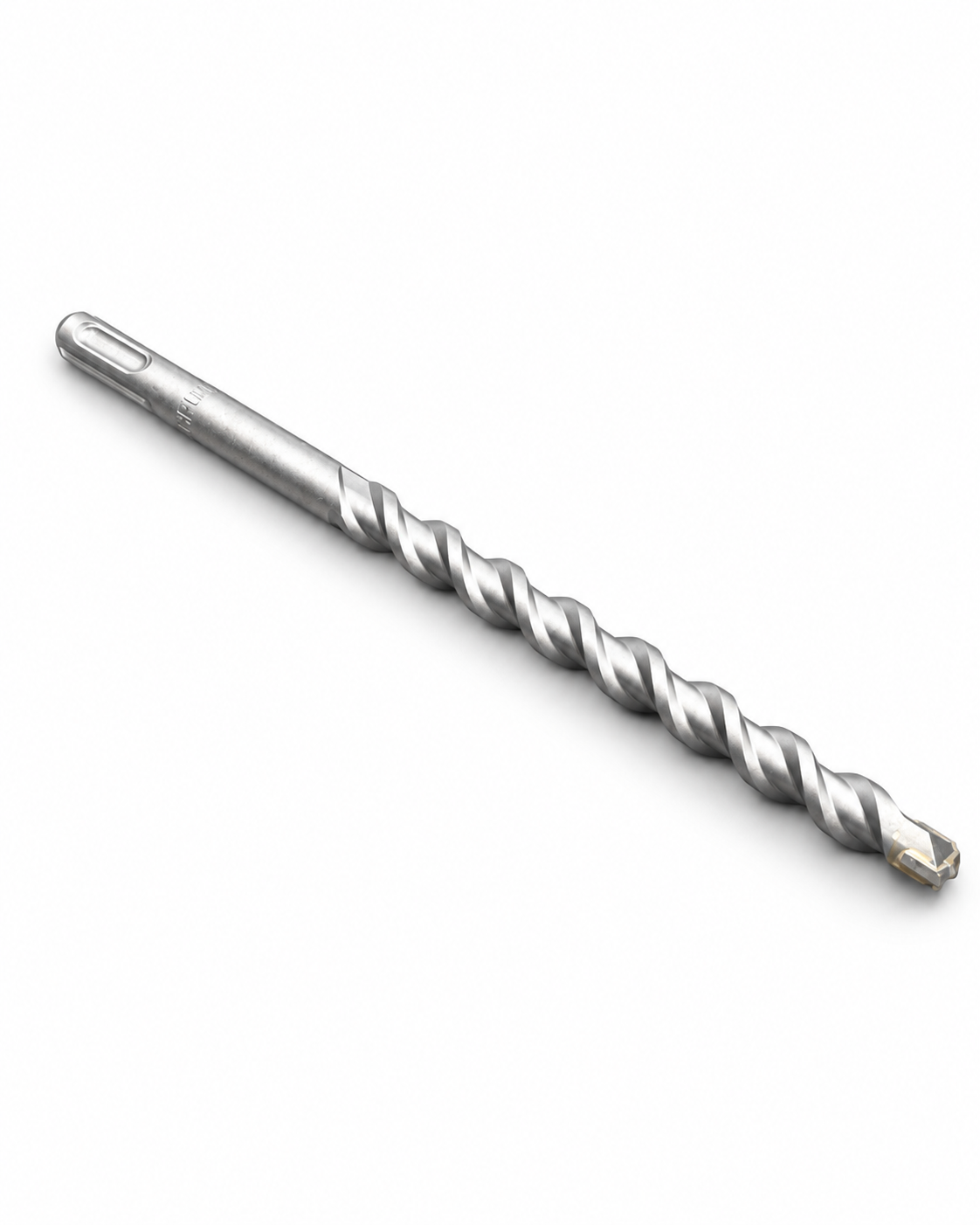

A high quality Sintered Carbide SDS Plus Masonry Hammer Drill Bit -12mm diameter x 210mm overall length.
SDS plus drill bits have a special shank with keyways to support the extra torque an SDS Plus drill provides. Narrow side edges reduce resistance. SDS comes from the German “Stecken - Drehen - Sichern” (Insert - Twist - Secure).
Suitable for drilling concrete, blockwork, natural stone, solid or perforated bricks, hollow blocks and more. Whether you’re drilling holes for anchors or fixings, cable or pipe bases, this SDS plus masonry drill bit will come in handy - including drilling the fixing holes for our Pallet Racking Floor Bolts when anchoring racking uprights to a concrete floor.
The SDS+ (plus) shank fits into a simple spring-loaded chuck, so the bit is pushed straight in without tightening. This shank and chucks made for it are especially suited to hammer drilling with masonry drills in stone and concrete. The drill bit is not held solidly in the chuck but can slide back and forth like a piston; it does not slip during rotation due to the non-circular shank cross-section, matching the chuck. The hammer of the drill accelerates only the drill bit itself, not the mass of the chuck, making hammer drilling with an SDS shank drill bit far more productive than with other shank types.
Features & Benefits
- High Grade Sintered Carbide Tip - heavy duty strike-resistant tip made of sintered carbide
- 160° Shallow Nose Angle - optimum angle for penetration and chiselling effect
- Deep Flutes - optimum removal of dust & debris via rounded spiral geometry
- Strengthened Core - optimum transfer of hammering, stability and strength
- DIN 8035 - ensuring perfect quality, drilling speed & vibration reduction
- Heat Treated - for extra strength & longevity
Specification
- Diameter: 12mm
- Overall length: 210mm
- Shank: SDS Plus
